122A10949X - CONEC

Description: Conn DIN 41612 F 32 POS 5.08mm Solder ST Thru-Hole

Download 122A10949X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

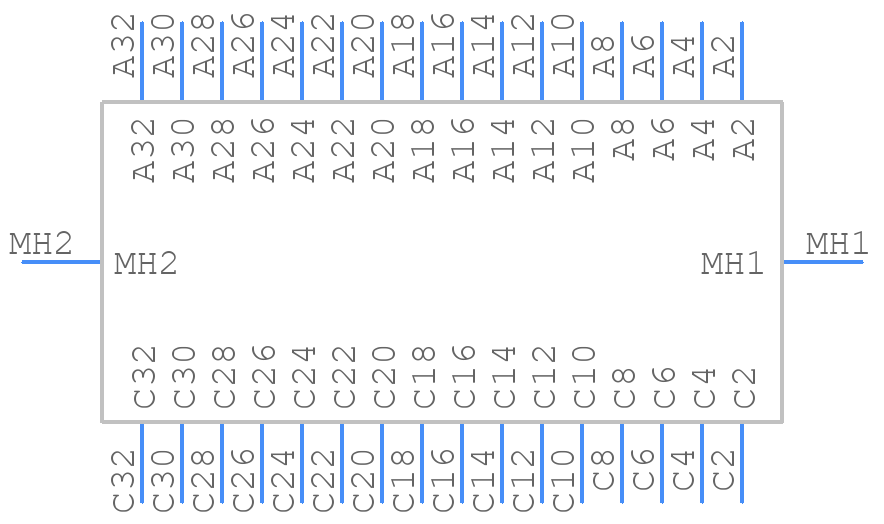

122A10949X - CONEC - PCB symbol
click to zoom
PCB Footprints

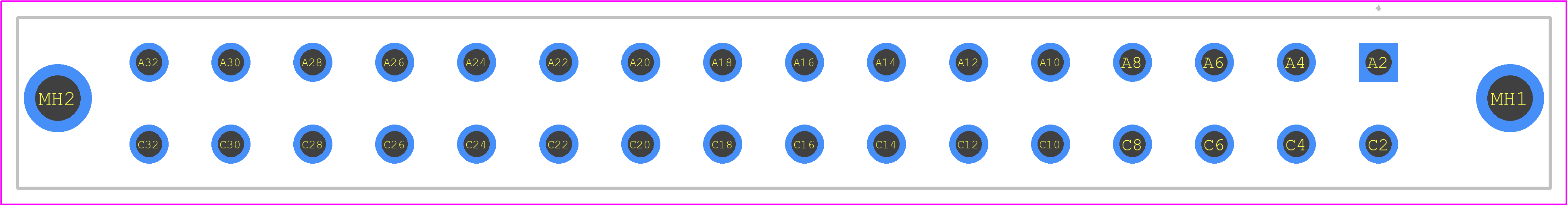

122A10949X - CONEC PCB footprint - Other - Other - 122A10949X-2
click to zoom
3D Models
122A10949X - CONEC - 3D model - Other - 122A10949X-2
click to zoom

122A10949X Details

  • Manufacturer Part Number:

    122A10949X

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Conec Corporation

  • YTEOL:

    0

  • Additional Feature:

    STANDARD: DIN 41612, PANEL MOUNTABLE

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    5.08 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    32

122A10949X Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 Nm to 1.5 Nm, but it's recommended to consult the Conec Corporation's application notes or contact their technical support for specific guidance.
  • Yes, the 122A10949X connector is designed to withstand high-vibration environments, but it's essential to follow proper mounting and installation procedures to ensure reliable performance.
  • The 122A10949X connector is designed to operate in a temperature range of -40°C to 125°C and can withstand humidity up to 95%. However, it's recommended to consult Conec Corporation's environmental specifications and application notes for specific guidance.
  • The 122A10949X connector is rated for a minimum of 500 mating cycles, but this can vary depending on the application and environmental conditions. It's recommended to consult Conec Corporation's reliability data and application notes for specific guidance.
  • The 122A10949X connector is designed to be compatible with other connectors that meet the same industry standards (e.g., IEC 61076-2-101). However, it's recommended to verify compatibility with the specific connector model and manufacturer before use.
