1248AS-H-220M=P3 - Murata Electronics

Description: DEM8040C Series Inductor 22μH ±20% 3131 (8080)

Download 1248AS-H-220M=P3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1248AS-H-220M=P3 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

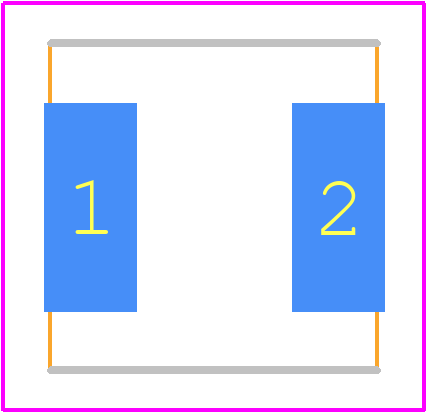

1248AS-H-220M=P3 - Murata Electronics PCB footprint - Other - Other - 3131 (8080) T=4.0mm
click to zoom
3D Models
1248AS-H-220M=P3 - Murata Electronics - 3D model - Other - 3131 (8080) T=4.0mm
click to zoom

1248AS-H-220M=P3 Details

  • Manufacturer Part Number:

    1248AS-H-220M=P3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    CHIP

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Case/Size Code:

    3131

  • Construction:

    Rectangular

  • Core Material:

    FERRITE

  • DC Resistance:

    0.126 Ω

  • Inductance-Nom (L):

    22 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Package Height:

    4 mm

  • Package Length:

    8 mm

  • Package Style:

    SMT

  • Package Width:

    8 mm

  • Packing Method:

    TR, EMBOSSED, 13 INCH

  • Rated Current-Max:

    2.2 A

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    Reflow soldering

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    20%

1248AS-H-220M=P3 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the 1248AS-H-220M=P3 inductor can be found in the Murata Land Pattern Recommendation document, which provides detailed information on pad layout and dimensions for optimal performance and reliability.
  • While the datasheet specifies an operating temperature range of -40°C to +125°C, Murata recommends derating the inductor's current rating for temperatures above 85°C to ensure reliable operation. Consult the Murata Temperature Derating Guide for more information.
  • Yes, the 1248AS-H-220M=P3 inductor is designed and manufactured to meet the requirements of high-reliability applications, including AEC-Q200 automotive and MIL-STD-202 military standards. However, it's essential to consult with Murata's application engineers to ensure the inductor meets the specific requirements of your application.
  • While the datasheet specifies a maximum current rating of 2.2A, it's possible to use the inductor in a design that requires a higher current rating by derating the inductor or using multiple inductors in parallel. However, it's crucial to consult with Murata's application engineers to ensure the inductor meets the specific requirements of your application and to discuss potential customization options.
  • Murata's inductors, including the 1248AS-H-220M=P3, are designed to maintain their performance over time. However, like all components, they may experience some degradation due to aging. Murata provides reliability data and aging tests to help engineers predict the inductor's performance over its lifespan. Consult the Murata Reliability Handbook for more information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1248AS-H-220M=P3 Overview

Use the download button to access the 1248AS-H-220M=P3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1248A, or try a keyword search, such as Fixed Inductors

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
