1250450000 - Weidmüller

Description: PCB terminal, 160 V, 17.5 A, Pitch in mm: 3.50, 1.5 mm², Number of poles: 10, PUSH IN with actuator, SMD solder connection, 180°, Tape

Download 1250450000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1250450000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

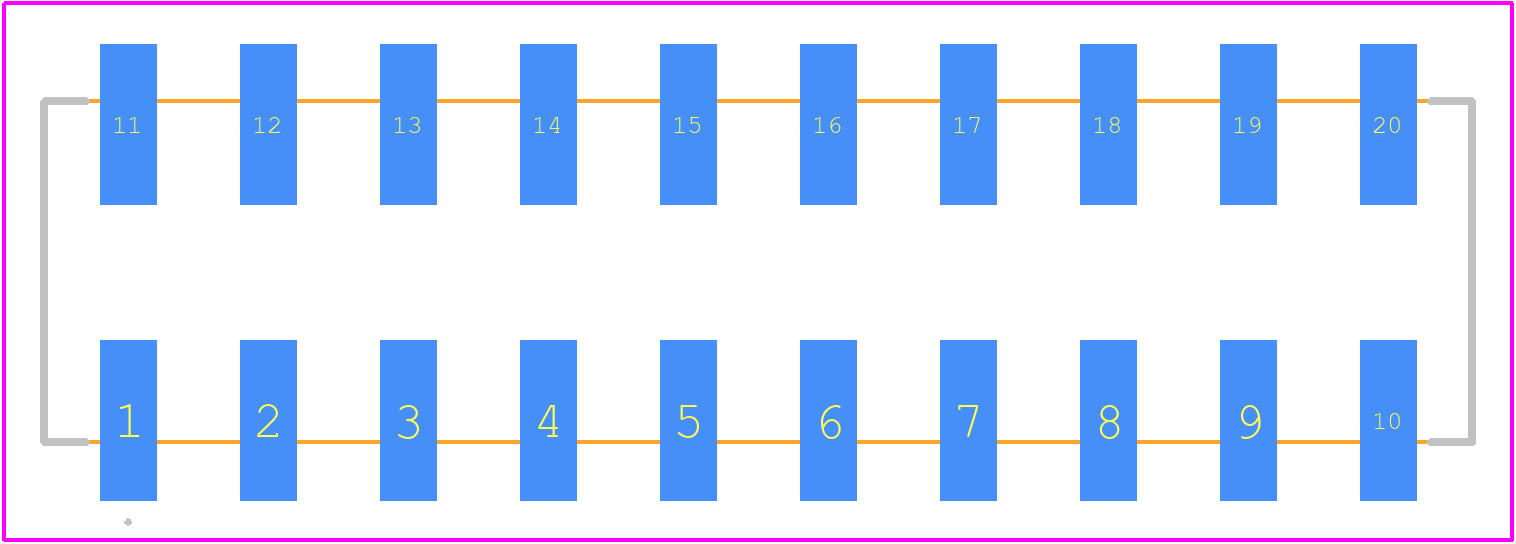

1250450000 - Weidmüller PCB footprint - Other - Other - 1250450000-1
click to zoom
3D Models
1250450000 - Weidmüller - 3D model - Other - 1250450000-1
click to zoom

1250450000 Details

  • Manufacturer Part Number:

    1250450000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • Additional Feature:

    STANDARD: UL 94V-0, GLASS FILLED LCP

  • Fastening Method:

    SPRING LOADED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Ways:

    10

  • Rated Current:

    12 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; CUL; EAC; IEC; UL; VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

  • Wire Gauge:

    14 AWG
