1255AY-1R2N=P3 - Murata Electronics

Description: DG6045C Series Inductor 1.2μH ±30% 2424 (6060)

Download 1255AY-1R2N=P3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1255AY-1R2N=P3 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

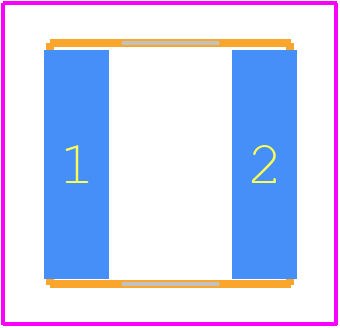

1255AY-1R2N=P3 - Murata Electronics PCB footprint - Other - Other - 2424 (6060) T=4.5mm
click to zoom
3D Models
1255AY-1R2N=P3 - Murata Electronics - 3D model - Other - 2424 (6060) T=4.5mm
click to zoom

1255AY-1R2N=P3 Details

  • Manufacturer Part Number:

    1255AY-1R2N=P3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    CHIP

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Case/Size Code:

    2424

  • Construction:

    Rectangular

  • Core Material:

    FERRITE

  • DC Resistance:

    0.0144 Ω

  • Inductance-Nom (L):

    1.2 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Package Height:

    4.5 mm

  • Package Length:

    6 mm

  • Package Style:

    SMT

  • Package Width:

    6 mm

  • Packing Method:

    TR, EMBOSSED, 13 INCH

  • Rated Current-Max:

    5.9 A

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    Reflow soldering

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    30%

1255AY-1R2N=P3 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the 1255AY-1R2N=P3 is a rectangular pad with a size of 1.25 mm x 1.25 mm, with a non-solder mask defined (NSMD) pad shape. This is specified in the Murata land pattern guidelines.
  • The 1255AY-1R2N=P3 is rated for operation up to 125°C, but it's recommended to derate the current rating above 85°C. Consult the datasheet and Murata's temperature derating guidelines for specific information.
  • Yes, the 1255AY-1R2N=P3 is compatible with lead-free soldering processes, including SAC305 and Sn96.5Ag3Cu0.5. However, it's essential to follow the recommended soldering profile and temperature guidelines.
  • The ESR of the 1255AY-1R2N=P3 is not explicitly stated in the datasheet, but it can be estimated to be around 0.1-0.2 ohms based on the inductor's design and materials.
  • The 1255AY-1R2N=P3 is designed for general-purpose use and has a self-resonant frequency (SRF) of around 100 MHz. While it can be used in high-frequency applications, it's essential to evaluate its performance and potential resonance issues in your specific design.
