1255AY-220M=P3 - Murata Electronics

1255AY-220M=P3 Frequently Asked Questions (FAQs)

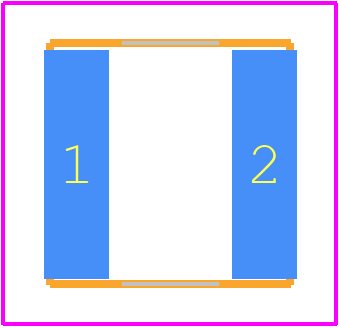

• What is the recommended land pattern for this capacitor?
  The recommended land pattern for the 1255AY-220M=P3 capacitor is a rectangular pad with a size of 2.5mm x 1.25mm, with a non-solder mask defined (NSMD) pad shape to ensure proper soldering and to prevent solder bridging.
• How do I handle the capacitor's moisture sensitivity?
  The 1255AY-220M=P3 capacitor is a moisture-sensitive device. To handle it, follow the recommended storage and handling procedures, such as storing the components in a dry, cool place, and using a dry box or desiccant to control humidity during assembly.
• What is the maximum reflow temperature for this capacitor?
  The maximum reflow temperature for the 1255AY-220M=P3 capacitor is 260°C, with a recommended reflow profile of 3°C/sec ramp-up, 30-second dwell time at 250°C, and 6°C/sec ramp-down.
• Can I use this capacitor in a high-vibration environment?
  The 1255AY-220M=P3 capacitor is designed to withstand moderate vibration levels. However, for high-vibration environments, it's recommended to use additional mechanical support or potting to ensure the capacitor's reliability and prevent mechanical stress.
• How do I ensure the capacitor's reliability in high-temperature applications?
  To ensure the capacitor's reliability in high-temperature applications, follow the recommended derating guidelines, use a thermally conductive interface material, and ensure good airflow around the component to prevent thermal hotspots.
