Part Image

1257 - Keystone Electronics

Description: KEYSTONE - 1257 - TERMINAL, MALE DISCONNECT, 0.25", QUICK CONNECT

Download 1257 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1257 - Keystone Electronics - PCB symbol
click to zoom
PCB Footprints

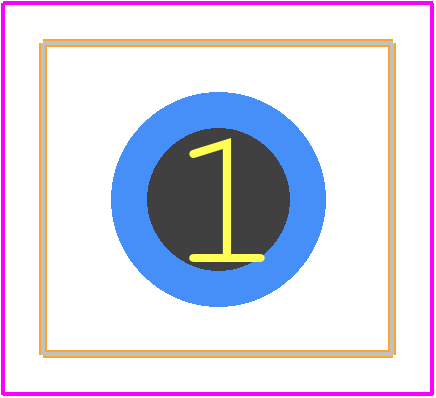

1257 - Keystone Electronics PCB footprint - Other - Other - 1257-1
click to zoom
3D Models
1257 - Keystone Electronics - 3D model - Other - 1257-1
click to zoom

1257 Details

  • Manufacturer Part Number:

    1257

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Keystone Electronics Corp

  • YTEOL:

    8

  • Terminal and Terminal Block Type:

    PCB TERMINAL

1257 Frequently Asked Questions (FAQs)

  • The recommended torque is 6-8 in-lbs (0.7-0.9 Nm) to ensure a secure connection.
  • Yes, the 1257 connector is designed to withstand vibrations and is suitable for use in high-vibration environments.
  • The maximum operating temperature for the 1257 connector is 105°C (221°F).
  • Yes, the 1257 connector is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
  • The 1257 connector is not designed for use in humid or wet environments and may not perform optimally in such conditions.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1257 Overview

Use the download button to access the 1257 schematic symbol, PCB footprint, and 3D model.
