1259CM-0001=P3 Frequently Asked Questions (FAQs)

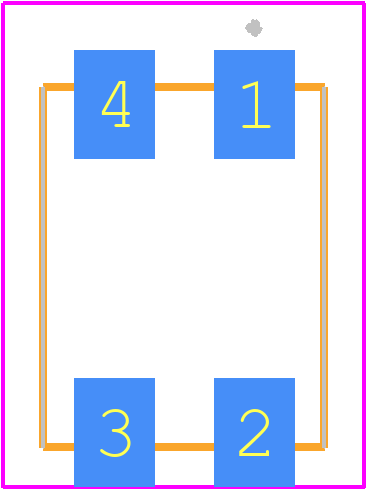

• What is the recommended land pattern for the 1259CM-0001=P3?
  The recommended land pattern for the 1259CM-0001=P3 can be found in the Murata datasheet or application notes. It typically includes a rectangular pad with a size of 2.5mm x 1.25mm, with a 0.5mm gap between the pads.
• How do I handle the thermal considerations for the 1259CM-0001=P3?
  The 1259CM-0001=P3 has a maximum operating temperature of 125°C. Ensure proper thermal management by providing adequate heat dissipation, using thermal vias, and keeping the component away from heat sources.
• What is the recommended soldering profile for the 1259CM-0001=P3?
  The recommended soldering profile for the 1259CM-0001=P3 is a peak temperature of 260°C, with a dwell time of 10-30 seconds above 220°C. Refer to the Murata application notes for more detailed information.
• Can I use the 1259CM-0001=P3 in a high-vibration environment?
  The 1259CM-0001=P3 is designed to withstand moderate vibration. However, for high-vibration environments, it's recommended to use additional mechanical support or consider a more robust component. Consult with Murata's technical support for specific guidance.
• How do I ensure the 1259CM-0001=P3 is properly decoupled?
  To ensure proper decoupling, place a 10nF to 100nF ceramic capacitor in close proximity to the 1259CM-0001=P3, with a short and wide trace to the capacitor. This helps to filter out high-frequency noise and ensure stable operation.
