Part Image

125A-78C00 - ATTEND

Description: Connector MXM 230P for QSeven P0,5 H=7,8mm, Standard Type

Download 125A-78C00 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
125A-78C00 - ATTEND - PCB symbol
click to zoom
PCB Footprints

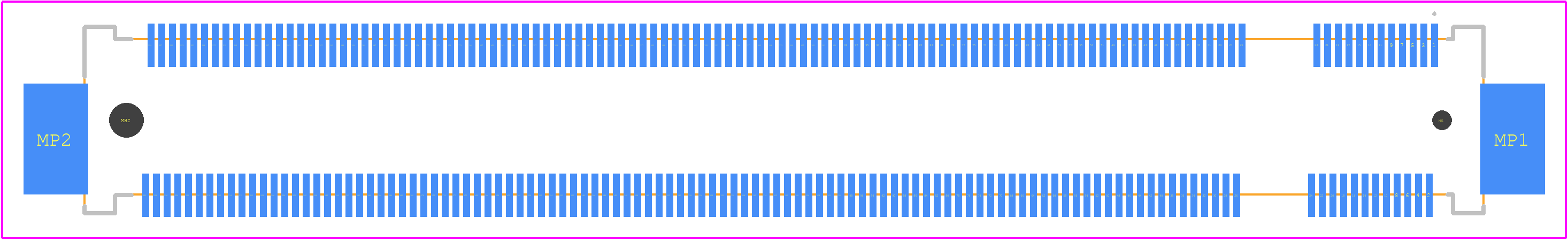

125A-78C00 - ATTEND PCB footprint - Other - Other - 125A-78C00-2
click to zoom
3D Models
125A-78C00 - ATTEND - 3D model - Other - 125A-78C00-2
click to zoom

125A-78C00 Details

  • Manufacturer Part Number:

    125A-78C00

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Attend Technology Inc

  • YTEOL:

    0

  • Body Breadth:

    0.307 inch

  • Body Depth:

    0.343 inch

  • Body Length:

    2.575 inch

  • Connector Type:

    PCB CONNECTOR

  • Contact Gender:

    FEMALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    BELLOWED TYPE

  • Filter Feature:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • Mating Contact Pitch:

    0.02 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    7 mm

  • Plating Thickness:

    5u inch

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.5 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    230

  • UL Flammability Code:

    94V-0

125A-78C00 Frequently Asked Questions (FAQs)

  • Attend Technology recommends a 4-layer PCB with a dedicated thermal layer, and a minimum of 2 oz copper thickness for optimal heat dissipation.
  • To ensure reliable communication, use a pull-up resistor on the CS pin, and ensure the SPI clock frequency is within the recommended range of 100 kHz to 1 MHz.
  • The 125A-78C00 is rated for operation from -40°C to 85°C, but it's recommended to derate the current output above 70°C to ensure reliability.
  • Yes, the 125A-78C00 is designed to withstand vibrations up to 10G, but it's recommended to use a secure mounting method, such as a screw-down or adhesive, to prevent damage.
  • Attend Technology recommends using a logic analyzer to monitor the SPI interface, and checking the device's status registers for error flags. Consult the datasheet and application notes for more information.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

125A-78C00 Overview

Use the download button to access the 125A-78C00 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 125A-, or try a keyword search, such as Headers and Edge Type Connectors
