1267AY-3R3N=P3 - Murata Electronics

Description: Fixed Inductors 3.3uH 15.6mOhms6.1A +/-30% 8.3x8.3x4.0mm

Download 1267AY-3R3N=P3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1267AY-3R3N=P3 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

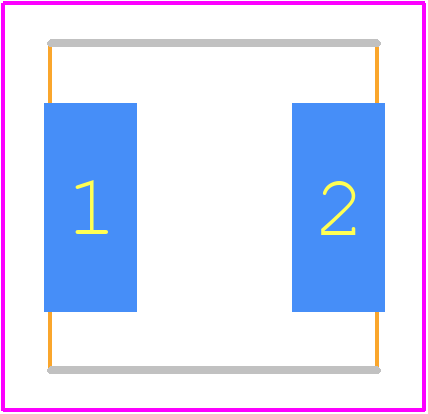

1267AY-3R3N=P3 - Murata Electronics PCB footprint - Other - Other - 3131 (8080) T=4.0mm
click to zoom
3D Models
1267AY-3R3N=P3 - Murata Electronics - 3D model - Other - 3131 (8080) T=4.0mm
click to zoom

1267AY-3R3N=P3 Details

  • Manufacturer Part Number:

    1267AY-3R3N=P3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    CHIP

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Case/Size Code:

    3131

  • Construction:

    Rectangular

  • Core Material:

    FERRITE

  • DC Resistance:

    0.0156 Ω

  • Inductance-Nom (L):

    3.3 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Package Height:

    4 mm

  • Package Length:

    8 mm

  • Package Style:

    SMT

  • Package Width:

    8 mm

  • Packing Method:

    TR, EMBOSSED, 13 INCH

  • Rated Current-Max:

    6.1 A

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    Reflow soldering

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    30%
