1274AS-H-100M=P3 - Murata Electronics

Description: Toko DEM10050C Series Shielded Wire-wound SMD Inductor with a Ferrite Core, 10 μH Wire-Wound 8.2A Idc

Download 1274AS-H-100M=P3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1274AS-H-100M=P3 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

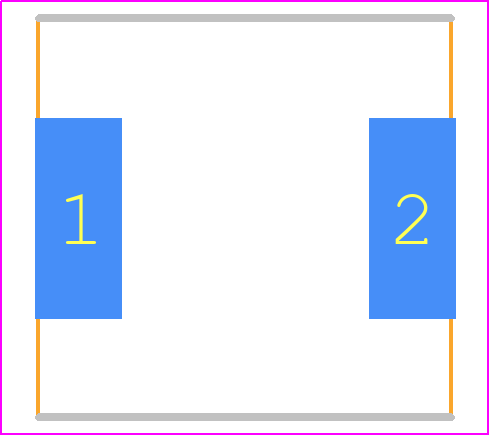

1274AS-H-100M=P3 - Murata Electronics PCB footprint - Other - Other - 3939 (100100) T=5.0mm
click to zoom
3D Models
1274AS-H-100M=P3 - Murata Electronics - 3D model - Other - 3939 (100100) T=5.0mm
click to zoom

1274AS-H-100M=P3 Details

  • Manufacturer Part Number:

    1274AS-H-100M=P3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    CHIP

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    7

  • Case/Size Code:

    3939

  • Construction:

    Rectangular

  • Core Material:

    FERRITE

  • DC Resistance:

    0.0304 Ω

  • Inductance-Nom (L):

    10 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Package Height:

    5 mm

  • Package Length:

    10 mm

  • Package Style:

    SMT

  • Package Width:

    10 mm

  • Packing Method:

    TR, EMBOSSED, 13 INCH

  • Rated Current-Max:

    4.4 A

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    Reflow soldering

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    20%

1274AS-H-100M=P3 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the 1274AS-H-100M=P3 can be found in the Murata Land Pattern document, which provides detailed information on pad layout, spacing, and dimensions for optimal mounting and soldering.
  • The 1274AS-H-100M=P3 is a moisture-sensitive device. It's essential to follow the recommended storage and handling procedures outlined in the Murata Moisture Sensitivity Level (MSL) document to prevent damage during assembly and reflow soldering.
  • While the datasheet specifies the maximum rated voltage, it's essential to consider voltage derating for reliable operation. As a general guideline, a 10-20% voltage derating is recommended to ensure long-term reliability and to account for potential voltage fluctuations.
  • The 1274AS-H-100M=P3 is rated for operation up to 125°C. However, it's crucial to consider the specific application's temperature profile and potential thermal stresses. Consult with Murata's application engineers or a thermal expert to ensure the component's reliability in high-temperature environments.
  • Murata recommends following the standard reflow soldering profile, with a peak temperature of 260°C and a dwell time of 20-30 seconds. It's essential to consult the Murata Soldering Profile document for detailed guidelines on soldering conditions and thermal management.
