1289480000 - Weidmüller

Description: PCB connector (board connection), 160 V, 13.4 A, Pitch in mm: 3.50, Number of poles: 10, THT/THR solder connection, Box

Download 1289480000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1289480000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

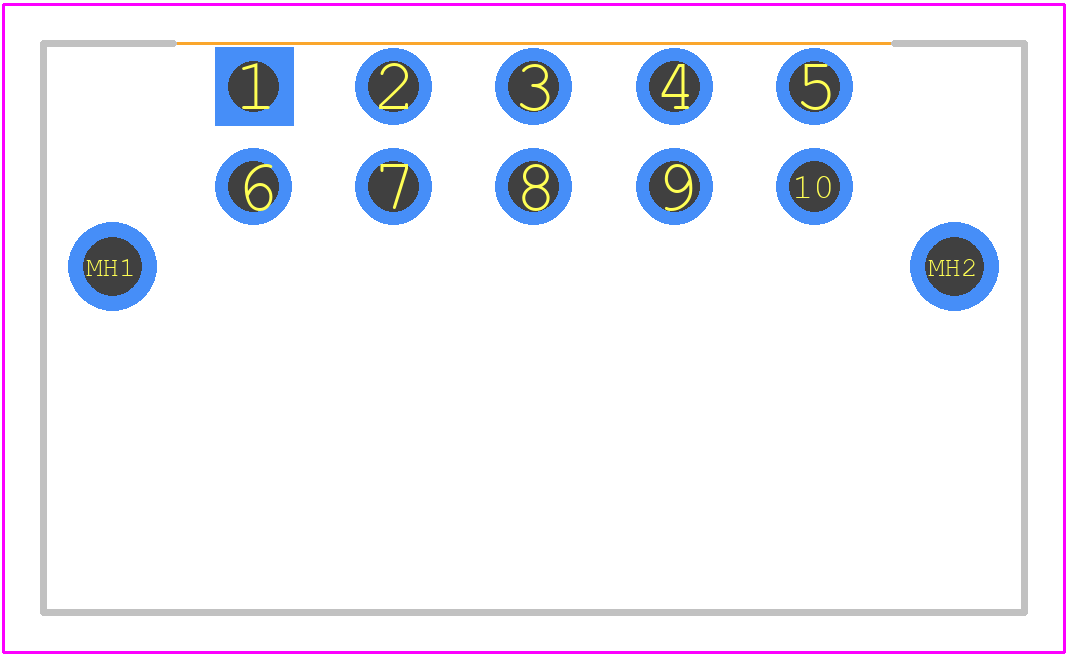

1289480000 - Weidmüller PCB footprint - Other - Other - 1289480000
click to zoom
3D Models
1289480000 - Weidmüller - 3D model - Other - 1289480000
click to zoom

1289480000 Details

  • Manufacturer Part Number:

    1289480000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: GLASS FILLED LIQUID CRYSTAL POLYMER

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    2

  • Number of Ways:

    10

  • Rated Current:

    10 A

  • Rated Voltage:

    150 V

  • Safety Approval:

    CUL; IEC; UL

  • Terminal Gender:

    FEMALE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

1289480000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1289480000 is -40°C to 85°C, as specified by Weidmüller.
  • Yes, the 1289480000 is RoHS and REACH compliant, meeting the European Union's directives for restricted substances and chemical safety.
  • The typical lead time for delivery of the 1289480000 varies depending on the region and availability, but it's usually around 2-4 weeks.
  • The 1289480000 is not designed for use in hazardous locations. It does not have any explosion-proof or intrinsic safety certifications.
  • The recommended torque for the screw terminals on the 1289480000 is 0.5 Nm to 1.5 Nm, depending on the wire size and type.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1289480000 Overview

Use the download button to access the 1289480000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 12894, or try a keyword search, such as Terminals and Terminal Blocks
