1290120000 - Weidmüller

Description: PCB connector (board connection), 160 V, 13.4 A, Pitch in mm: 3.50, Number of poles: 20, THT/THR solder connection, Box

Download 1290120000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1290120000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

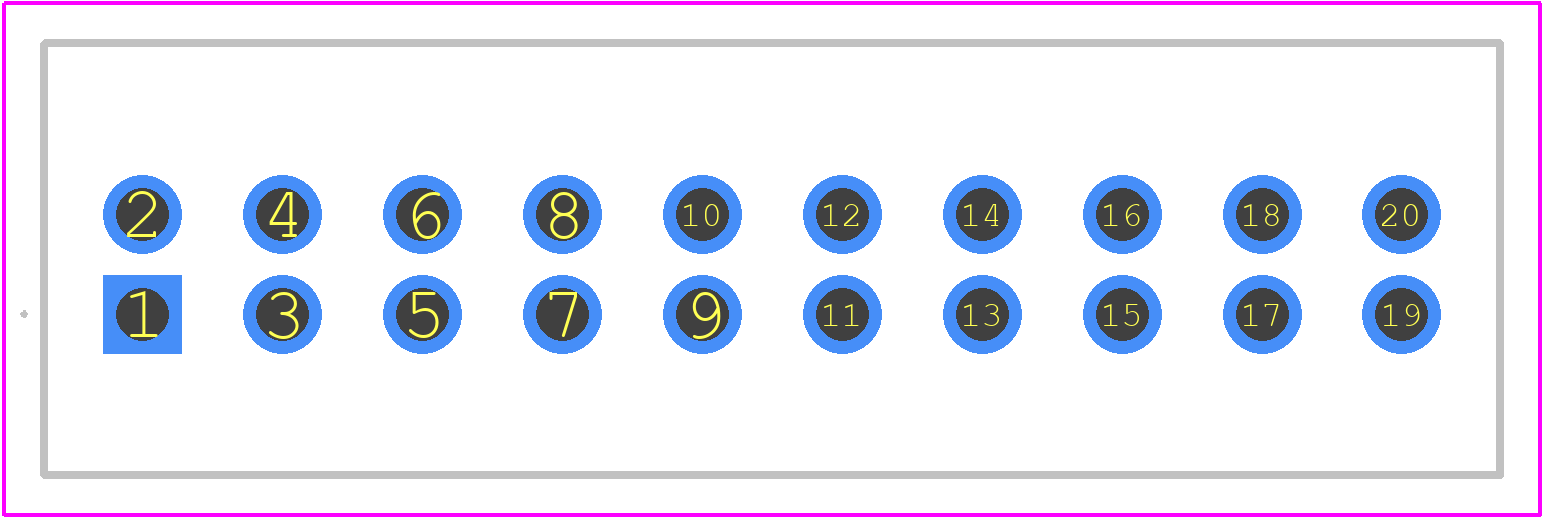

1290120000 - Weidmüller PCB footprint - Other - Other - 1290120000-3
click to zoom
3D Models
1290120000 - Weidmüller - 3D model - Other - 1290120000-3
click to zoom

1290120000 Details

  • Manufacturer Part Number:

    1290120000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1290120000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1290120000 is -40°C to 85°C, as specified by Weidmüller.
  • Yes, the 1290120000 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the European Union's environmental regulations.
  • The recommended torque for the screw terminals on the 1290120000 is 0.5 Nm to 1.2 Nm, as specified by Weidmüller.
  • The 1290120000 is not designed for use in hazardous locations, such as explosive atmospheres. It is intended for use in general industrial applications.
  • The typical lead time for delivery of the 1290120000 varies depending on the region and availability. It is recommended to check with Weidmüller or an authorized distributor for the most up-to-date lead time information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1290120000 Overview

Use the download button to access the 1290120000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 12901, or try a keyword search, such as Terminals and Terminal Blocks
