The recommended torque for the screw terminals is 0.5-1.0 Nm (4-8 in-lbs).
Yes, the 1293 is designed to withstand high-vibration environments. However, it's recommended to secure the device using the screw terminals and ensure proper mounting to prevent damage.
The operating temperature range for the 1293 is -40°C to 105°C (-40°F to 221°F).
Yes, the 1293 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant.
The 1293 is not designed for use in humid or wet environments. It's recommended to use the device in dry, indoor environments to ensure optimal performance and longevity.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
1293 Overview

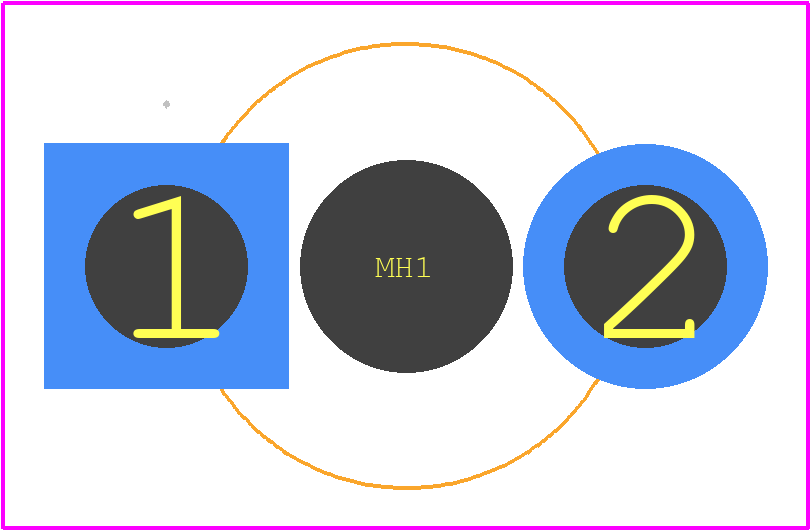

Use the download button to access the 1293 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search
or try a keyword search, such as Power/Mains Transformers
