1294 footprint, schematic symbol and 3D model by Keystone Electronics

Symbol

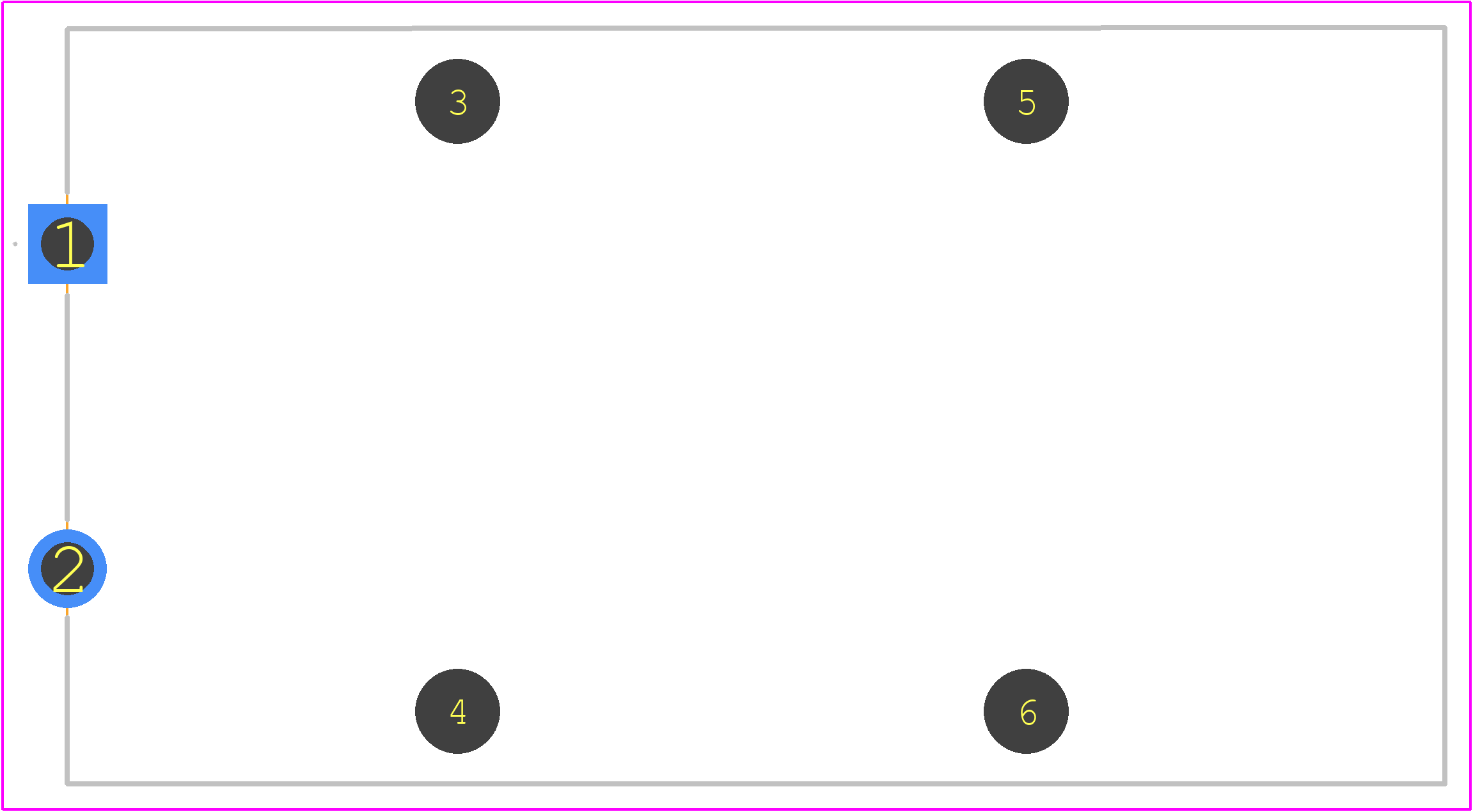

PCB Footprints

3D Models

1294 Details

The recommended torque for the screw terminals is 0.5-0.8 Nm (4-6 in-lbs).
Yes, the 1294 is designed to withstand high-vibration environments, but it's recommended to secure the device properly to prevent damage or disconnection.
The maximum wire size that can be used with the 1294 is 14 AWG (1.5 mm²).
The 1294 is designed for indoor use, but it can be used outdoors if properly sealed and protected from environmental factors such as moisture and extreme temperatures.
The 1294 is rated for operation up to 105°C (221°F), but it's recommended to derate the current capacity at higher temperatures to ensure reliable operation.

Community Provided

System Verified

Community Approved

Use the download button to access the 1294 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search or try a keyword search, such as Power/Mains Transformers
