131-3701-266 - Cinch Connectivity Solutions

Description: RF Connectors / Coaxial Connectors PC JCK .155"LEGS Ni

Download 131-3701-266 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

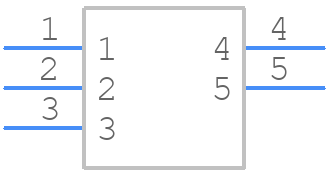

131-3701-266 - Cinch Connectivity Solutions - PCB symbol
click to zoom
PCB Footprints

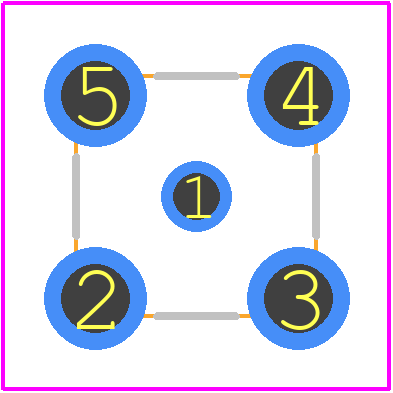

131-3701-266 - Cinch Connectivity Solutions PCB footprint - Other - Other - 131-3701-266-1
click to zoom
3D Models
131-3701-266 - Cinch Connectivity Solutions - 3D model - Other - 131-3701-266-1
click to zoom

131-3701-266 Details

  • Manufacturer Part Number:

    131-3701-266

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Cinch Connectivity Solutions

  • YTEOL:

    7.65

  • Body/Shell Style:

    RECEPTACLE

  • Characteristic Impedance:

    50 Ω

  • Connector Type:

    RF SMB CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    SNAP

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    PERFLUOROALKOXY/POLYTETRAFLUOROETHYLENE

  • MIL Conformance:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Operating Frequency-Max:

    4 GHz

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Termination Type:

    SOLDER

131-3701-266 Frequently Asked Questions (FAQs)

  • The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the screw threads of the 131-3701-266 connector.
  • Yes, the 131-3701-266 connector is designed to withstand high-vibration environments and is suitable for applications where shock and vibration are a concern.
  • Yes, the 131-3701-266 connector is designed to operate in harsh environments, including high temperatures up to 150°C and high humidity. However, it's essential to follow the recommended storage and operating conditions outlined in the datasheet.
  • The 131-3701-266 connector is rated for a minimum of 500 mating cycles, making it suitable for applications where frequent connections and disconnections are required.
  • Yes, the 131-3701-266 connector is designed to be compatible with other Cinch Connectivity Solutions products, including backshells, adapters, and cable assemblies.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

131-3701-266 Overview

Use the download button to access the 131-3701-266 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 131-3, or try a keyword search, such as RF SMB/SSMB Connectors
