131-3711-201 - Cinch Connectivity Solutions

Description: Straight SMB Connector 50Ohms Gold/Brass

Download 131-3711-201 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
131-3711-201 - Cinch Connectivity Solutions - PCB symbol
click to zoom
PCB Footprints

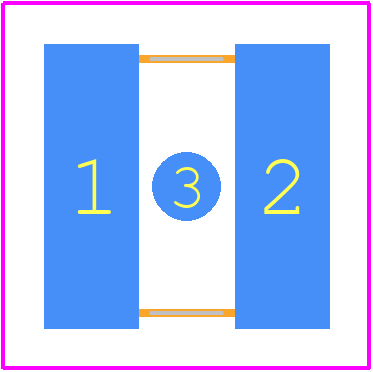

131-3711-201 - Cinch Connectivity Solutions PCB footprint - Other - Other - 131-3711-201-2
click to zoom
3D Models
131-3711-201 - Cinch Connectivity Solutions - 3D model - Other - 131-3711-201-2
click to zoom

131-3711-201 Details

  • Manufacturer Part Number:

    131-3711-201

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Cinch Connectivity Solutions

  • YTEOL:

    7.65

  • Body/Shell Style:

    RECEPTACLE

  • Characteristic Impedance:

    50 Ω

  • Connector Type:

    RF SMB CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    SNAP

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    PERFLUOROALKOXY/POLYTETRAFLUOROETHYLENE

  • MIL Conformance:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Operating Frequency-Max:

    4 GHz

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Termination Type:

    SURFACE MOUNT
