131-8701-301 footprint, schematic symbol and 3D model by Cinch Connectivity Solutions

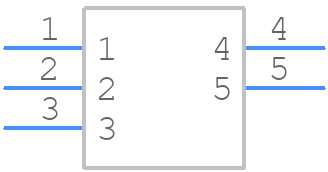

Symbol

click to zoom

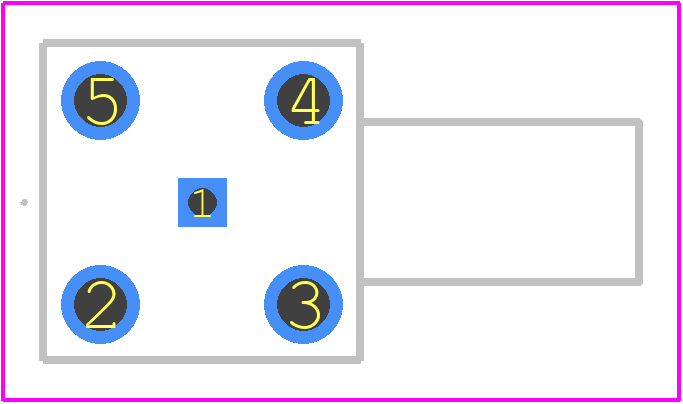

PCB Footprints

131-8701-301 - Cinch Connectivity Solutions PCB footprint - Other - Other - 131-8701-301-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 131-8701-301
Part Number 131-8701-301
Manufacturer Cinch Connectivity Solutions
Pin Count 5
Part Category Connector
Package Category Other
Footprint Name Other - 131-8701-301-1
Released Date Sep 25, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

131-8701-301 Details

Manufacturer Part Number:
131-8701-301
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.10
Manufacturer:
Cinch Connectivity Solutions
YTEOL:
7.65
Body Depth:
0.586 inch
Body/Shell Style:
RECEPTACLE
Characteristic Impedance:
75 Ω
Connector Type:
RF SMB CONNECTOR
Contact Gender:
MALE
Contact Resistance:
8 mΩ
Contact Style:
COAX
Coupling Type:
SNAP
Dielectric Withstanding Voltage:
1414VAC V
Durability:
500 Cycles
Filter Feature:
NO
Insulation Resistance:
1000000000 Ω
Insulator Material:
POLYTETRAFLUOROETHYLENE
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number of Ports:
1
Operating Frequency-Max:
2 GHz
Operating Temperature-Max:
165 °C
Operating Temperature-Min:
-65 °C
Option:
GENERAL PURPOSE
Panel Mount:
NO
Shell Material:
BRASS
Terminal Length:
0.083 inch
Termination Type:
SOLDER
Total Number of Contacts:
1

131-8701-301 Frequently Asked Questions (FAQs)

The recommended torque for the screw threads is 10-12 in-lbs (1.1-1.4 Nm) to ensure proper mating and to prevent damage to the connector.
Yes, the 131-8701-301 connector is designed to withstand high-vibration environments. However, it's recommended to follow the manufacturer's guidelines for mounting and securing the connector to ensure reliable performance.
The 131-8701-301 connector has a IP67 rating, making it suitable for outdoor use. However, it's essential to ensure proper sealing and protection from environmental factors such as moisture, dust, and extreme temperatures.
The 131-8701-301 connector is designed for use with specific cable types. Using a different cable type may affect the connector's performance and reliability. It's recommended to consult with the manufacturer or a qualified engineer to ensure compatibility.
The 131-8701-301 connector has an operating temperature range of -40°C to 105°C. Exceeding this range may affect the connector's performance and reliability.

Trust Checks

Community Provided

System Verified

Community Approved

131-8701-301 Overview

Use the download button to access the 131-8701-301 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 131-8, or try a keyword search, such as RF SMB/SSMB Connectors
