1318125-2 - TE Connectivity

Description: Body Features: Primary Product Color Black | Configuration Features: PCB Mount Orientation Vertical | Number of Positions 8 | Number of Rows 2 | Contact Features: Contact Mating Area Plating Material Thickness .38 MICM | Contact Type Pin | Contact Current Rating (Max) 5 AMP | Contact Mating Area Plating Material Gold | Contact Mating Area Plating Material Thickness 15 MICIN | Housing Features: Centerline (Pitch) .099 INCH | Centerline (Pitch) 2.5 MM | Housing Material Polyester GF | Industry Standards: UL F

Download 1318125-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

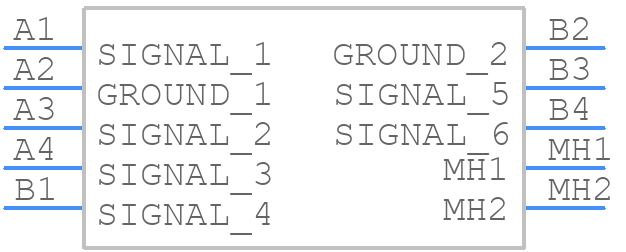

1318125-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
1318125-2 - TE Connectivity PCB footprint - Other - Other - 1318125-2-2
click to zoom
3D Models
1318125-2 - TE Connectivity - 3D model - Other - 1318125-2-2
click to zoom

1318125-2 Details

  • Manufacturer Part Number:

    1318125-2

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Board Mounting Option:

    SOLDERABLE RETENTION CLIPS

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYESTER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    5A

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    15u inch

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    5 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    2.5 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

1318125-2 Frequently Asked Questions (FAQs)

  • The recommended torque specification for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs). It's essential to follow this specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 1318125-2 connector is designed to withstand high-vibration environments. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 1318125-2 connector has a IP67 rating, making it suitable for outdoor and harsh environmental applications. However, it's essential to follow proper sealing and installation procedures to maintain the IP rating.
  • The 1318125-2 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). Exceeding this range may affect the connector's performance and reliability.
  • Yes, the 1318125-2 connector is designed to be compatible with other TE Connectivity products and some third-party components. However, it's essential to verify compatibility and follow proper mating and installation procedures.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1318125-2 Overview

Use the download button to access the 1318125-2 schematic symbol, PCB footprint, and 3D model.
