1318384-1 - TE Connectivity

Description: PCB Mount Header, Horizontal, Wire-to-Board, 40 Position, 2.2 mm [.087 in] Centerline, Fully Shrouded, Tin, 0.64/025 Connector System

Download 1318384-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1318384-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

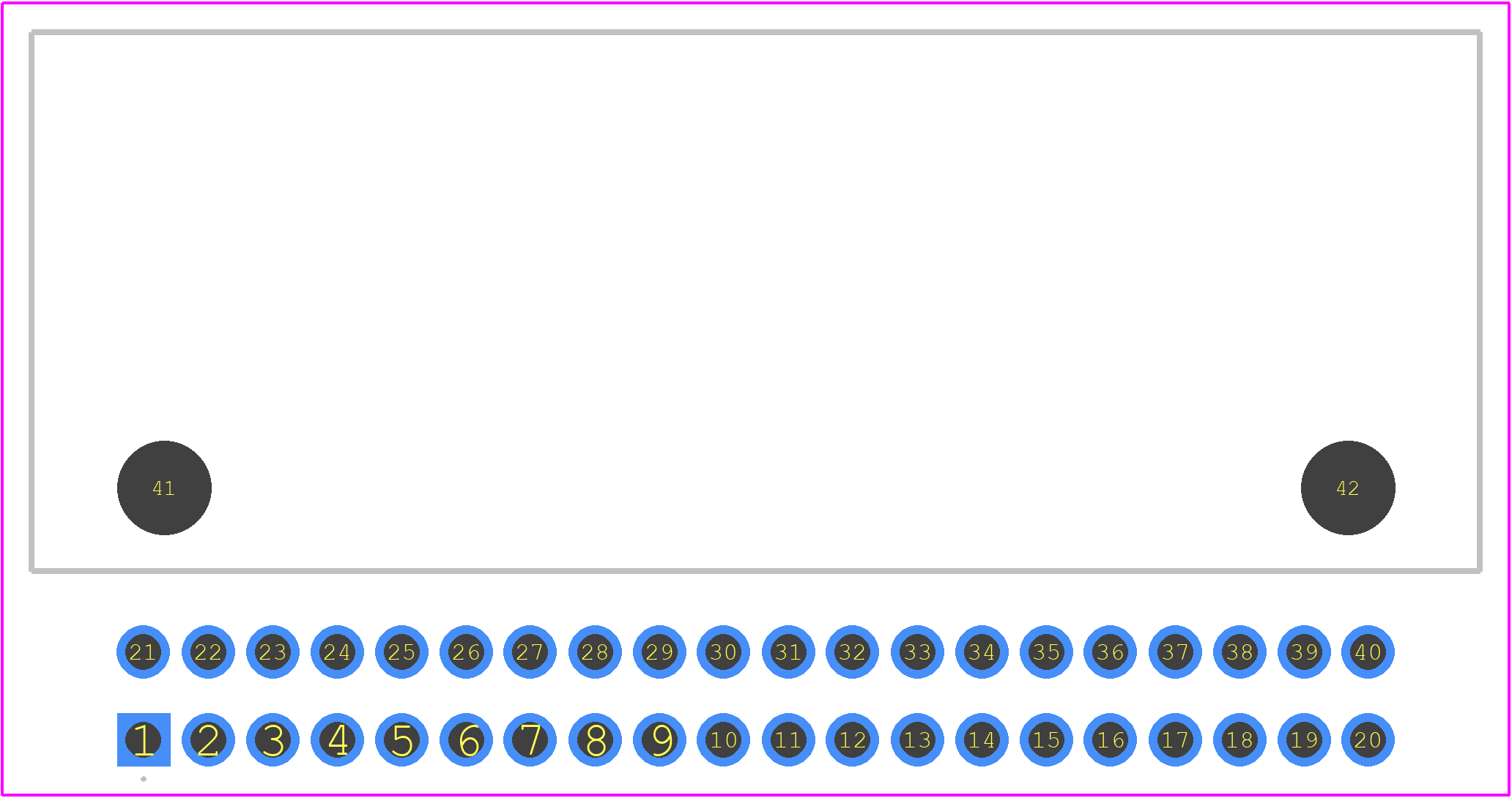

1318384-1 - TE Connectivity PCB footprint - Other - Other - 1318384-1-6
click to zoom
3D Models
1318384-1 - TE Connectivity - 3D model - Other - 1318384-1-6
click to zoom

1318384-1 Details

  • Manufacturer Part Number:

    1318384-1

  • Brand Name:

    TE Connectivity

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Body Breadth:

    1.945 inch

  • Body Length:

    0.963 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -30 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Voltage:

    12 V

  • Terminal Pitch:

    2.2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    40

1318384-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 1318384-1 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate smaller wire sizes (e.g., AWG 26-28) with the use of wire adapters or by following TE Connectivity's wire stripping and termination guidelines. However, it's crucial to verify the wire size and termination method to ensure reliable connections.
  • The 1318384-1 connector is designed to operate in a temperature range of -40°C to 125°C (-40°F to 257°F) and can withstand humidity levels up to 95%. However, it's essential to follow TE Connectivity's guidelines for environmental sealing and protection to ensure the connector's performance and reliability in harsh conditions.
  • Yes, to ensure reliable connections and prevent damage to the connector or PCB, it's essential to follow TE Connectivity's PCB layout guidelines, including keeping the PCB traces and components at a safe distance from the connector's mating area and ensuring proper clearance for the screw terminals.
