1318612-1 - TE Connectivity

Description: Body Features: Primary Product Color Natural | Configuration Features: Number of Positions 125 | Number of Signal Positions 125 | Number of Rows 3 | PCB Mount Orientation Right Angle | Number of Sections 5 | Contact Features: Mating Tab Thickness .025 INCH | Contact Mating Area Plating Material Tin (Sn) | Contact Type Tab | Mating Tab Width 1 MM | Mating Tab Thickness .64 MM | Mating Tab Width .04 INCH | Dimensions: PCB Thickness (Recommended) 1.6 MM | Connector Width 137.4 MM | Profile Height from PCB .886

Download 1318612-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1318612-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

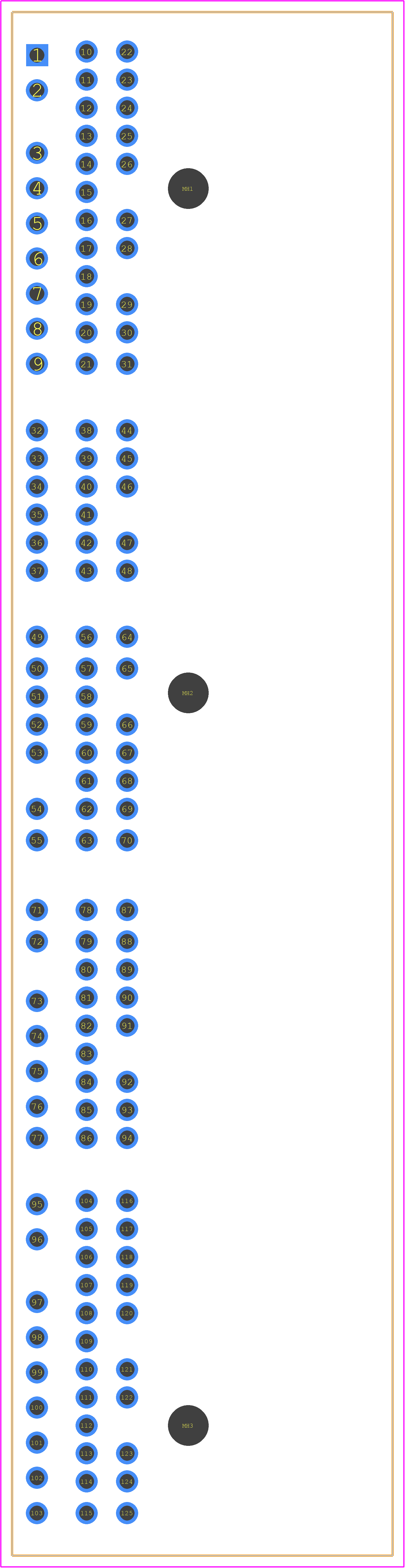

1318612-1 - TE Connectivity PCB footprint - Other - Other - 1318612-1-3
click to zoom
3D Models
1318612-1 - TE Connectivity - 3D model - Other - 1318612-1-3
click to zoom

1318612-1 Details

  • Manufacturer Part Number:

    1318612-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

1318612-1 Frequently Asked Questions (FAQs)

  • The recommended torque specification for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
  • Yes, the 1318612-1 connector is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10G acceleration.
  • Yes, the 1318612-1 connector is rated IP67, making it suitable for outdoor use and providing protection against dust and water ingress.
  • The operating temperature range for the 1318612-1 connector is -40°C to 125°C (-40°F to 257°F).
  • No, the 1318612-1 connector is designed for use with wire gauges 18 AWG to 24 AWG. Using a larger wire gauge may compromise the connector's performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1318612-1 Overview

Use the download button to access the 1318612-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 13186, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
