1318745-1 - TE Connectivity

Description: Body Features: Primary Product Color Natural | Configuration Features: Number of Sections 1 | Number of Rows 2 | Number of Positions 32 | PCB Mount Orientation Horizontal | Number of Signal Positions 32 | Contact Features: Contact Mating Area Plating Material Tin | Mating Tab Thickness .025 INCH | Mating Tab Width .64 MM | Contact Size .63mm | Contact Type Tab | Mating Tab Thickness .64 MM | Mating Tab Width .025 INCH | Dimensions: Profile Height from PCB .61 INCH | Connector Width 40.6 MM | Connector Lengt

Download 1318745-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

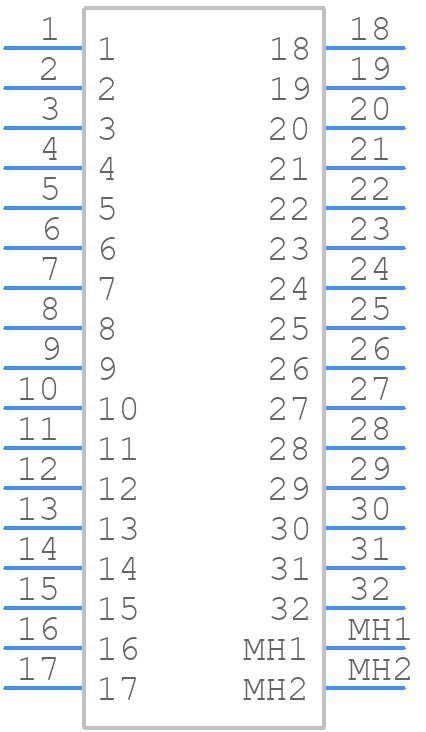

Symbol
1318745-1 - TE Connectivity - PCB symbol
click to zoom

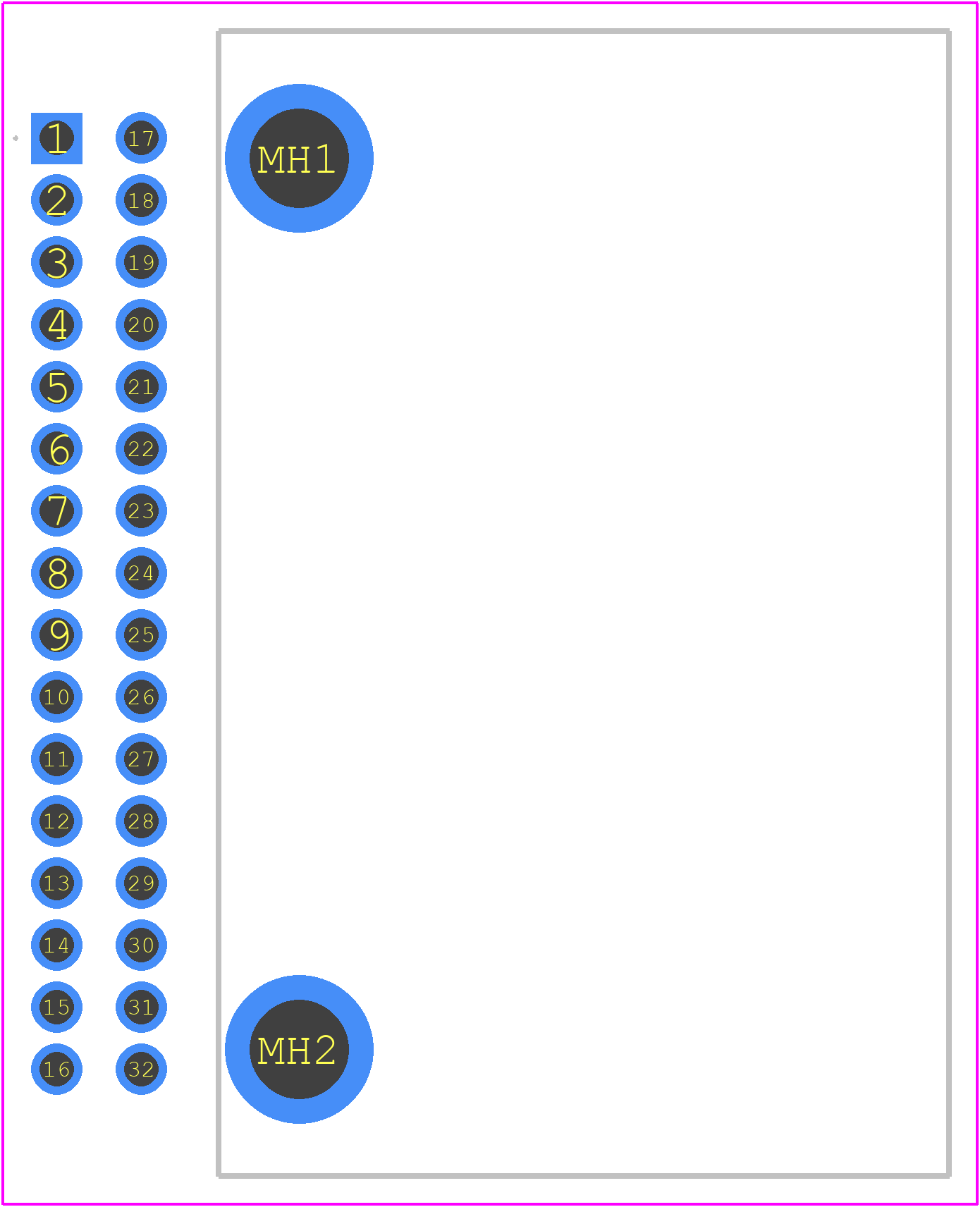

PCB Footprints
1318745-1 - TE Connectivity PCB footprint - Other - Other - 1318745-1-1
click to zoom
3D Models
1318745-1 - TE Connectivity - 3D model - Other - 1318745-1-1
click to zoom

1318745-1 Details

  • Manufacturer Part Number:

    1318745-1

  • Brand Name:

    TE Connectivity

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    1.598 inch

  • Body Depth:

    0.963 inch

  • Body Length:

    0.724 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -30 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Voltage:

    12 V

  • Reference Standard:

    UL

  • Terminal Pitch:

    2.2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    32

  • UL Flammability Code:

    94-HB

1318745-1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure reliable connections and prevent damage to the connector.
  • Yes, the 1318745-1 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as industrial machinery, transportation, and more.
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate a range of wire sizes. However, it's essential to consult with TE Connectivity or a qualified engineer to determine the suitability of the connector for your specific wire size requirements.
  • The 1318745-1 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). This makes it suitable for use in a wide range of applications, from industrial automation to automotive systems.
  • Yes, it's recommended to clean the connector with a soft brush and a mild detergent solution to remove any dirt or debris. Avoid using harsh chemicals or abrasive materials that can damage the connector's surface. Regular cleaning and inspection can help ensure reliable connections and extend the connector's lifespan.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1318745-1 Overview

Use the download button to access the 1318745-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 13187, or try a keyword search, such as Combination Line Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
