- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 1318751-1
- Part Number 1318751-1
- Manufacturer TE Connectivity
- Pin Count 80
- Part Category Connector
- Package Category Other

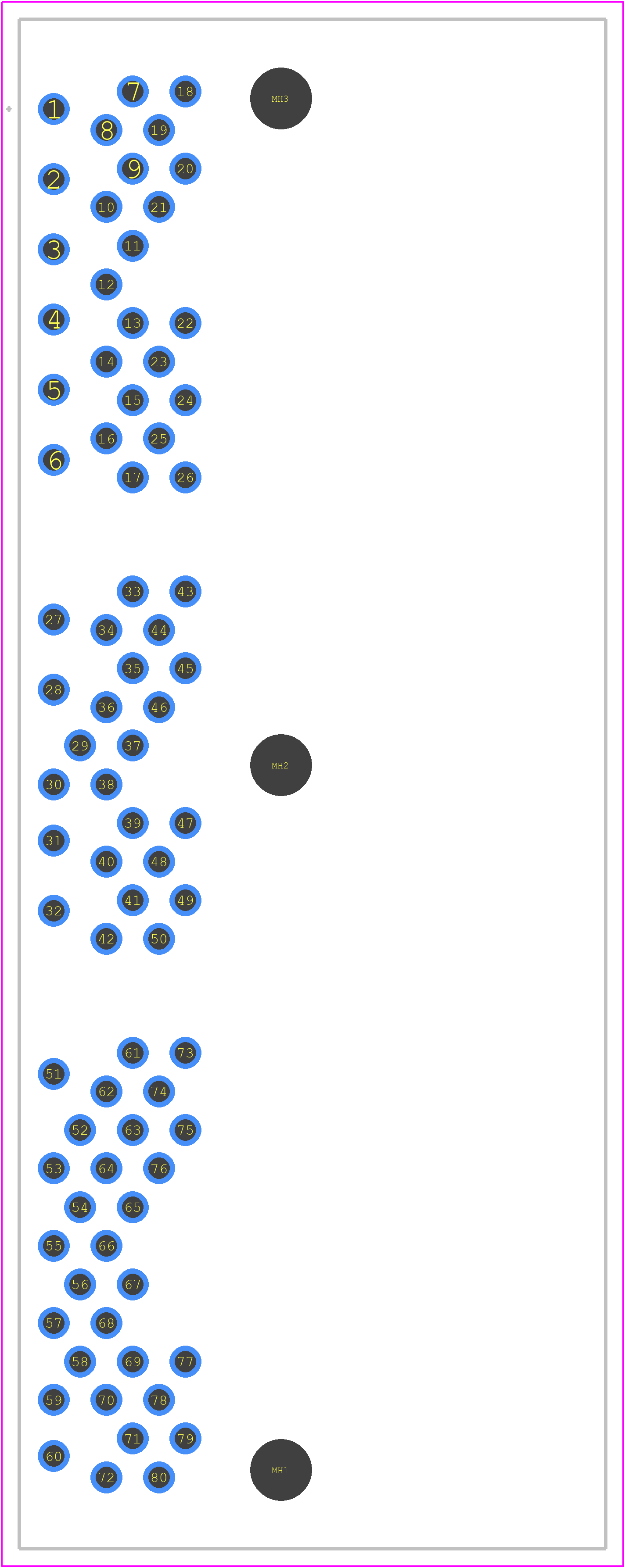

- Footprint Name Other - 1318751-1-1
- Released Date Jun 4, 2021
- Last Modified Date Apr 17, 2023 6:30 AM UTC
- Pinout / Pin List Click Here (Member Only)
1318751-1 Details
-
Manufacturer Part Number:
1318751-1
-
Brand Name:
AMP
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Not Recommended
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Manufacturer:
TE Connectivity
-
YTEOL:
3
-
Body Breadth:
1.315 inch
-
Body Depth:
1.594 inch
-
Body Length:
3.433 inch
1318751-1 Frequently Asked Questions (FAQs)
-
The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
-
Yes, the 1318751-1 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
-
While the datasheet recommends AWG 20-24 wire sizes, the connector can accommodate smaller wire sizes (e.g., AWG 26-28) with proper wire stripping and termination. However, using larger wire sizes may not be possible due to the connector's design constraints.
-
The 1318751-1 connector is designed to operate in a temperature range of -40°C to 125°C and can withstand moderate humidity levels. However, it's essential to follow proper sealing and protection procedures to ensure the connector remains reliable in harsh environments.
-
Yes, it's essential to follow proper PCB layout guidelines to ensure the connector is properly mounted and secured. This includes leaving sufficient clearance around the connector, using a suitable PCB material, and following recommended pad layouts and dimensions.
Trust Checks
Expert Contribution
System Verified
Community Approved
1318751-1 Overview
Use the download button to access the 1318751-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 13187,
or try a keyword search, such as Combination Line Connectors
