1318772-2 - TE Connectivity

Description: Body Features: Primary Product Color Natural | Configuration Features: Number of Signal Positions 12 | Number of Sections 1 | Number of Positions 12 | PCB Mount Orientation Horizontal | Number of Rows 2 | Contact Features: Mating Tab Width .025 INCH | Mating Tab Width .64 MM | Contact Type Tab | Mating Tab Thickness .64 MM | Mating Tab Thickness .025 INCH | Contact Mating Area Plating Material Tin | Contact Size .63mm | Dimensions: PCB Thickness (Recommended) 1.2 – 1.6 MM | Connector Width 18.6 MM | Conne

Download 1318772-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1318772-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

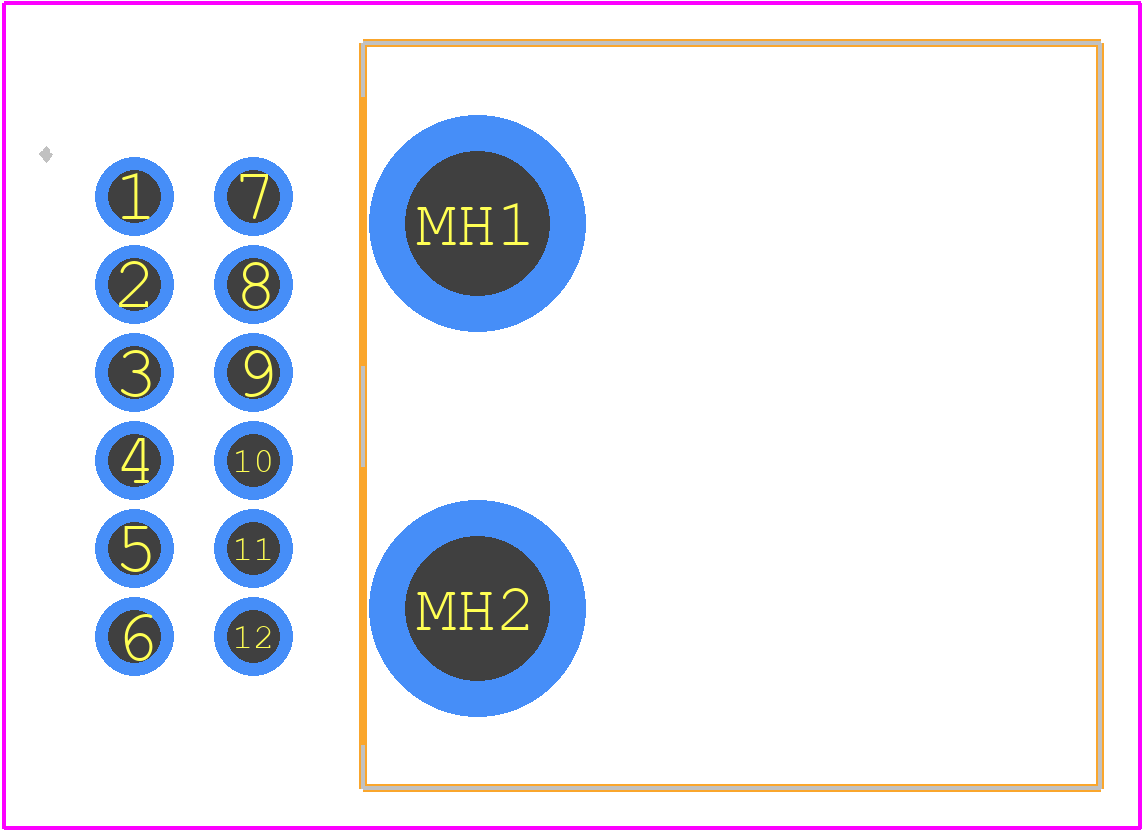

1318772-2 - TE Connectivity PCB footprint - Other - Other - 1318772-2-1
click to zoom
3D Models
1318772-2 - TE Connectivity - 3D model - Other - 1318772-2-1
click to zoom

1318772-2 Details

  • Manufacturer Part Number:

    1318772-2

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    0.732 inch

  • Body Length:

    0.963 inch

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -30 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Voltage:

    12 V

  • Terminal Pitch:

    2.2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    12

1318772-2 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the 1318772-2 connector is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for vibration testing and ensure proper mounting and securing of the connector.
  • The 1318772-2 connector has a IP67 rating, making it suitable for outdoor use, but it's essential to ensure proper sealing and protection from environmental factors such as moisture, dust, and extreme temperatures.
  • While it's technically possible to use a different wire gauge, it's not recommended as it may affect the connector's performance, reliability, and safety. It's best to follow the manufacturer's recommended wire gauge specifications.
  • To ensure proper mating and unmating, follow the manufacturer's guidelines for connector handling, alignment, and mating/unmating forces. It's also essential to ensure the connector is properly cleaned and inspected before use.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1318772-2 Overview

Use the download button to access the 1318772-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 13187, or try a keyword search, such as Telecom and Datacom Connectors
