1318853-2 - TE Connectivity

Description: Body Features: Primary Product Color Natural | Connector & Keying Code 1 | Configuration Features: Number of Rows 2 | Number of Sections 1 | Number of Positions 24 | PCB Mount Orientation Horizontal | Number of Signal Positions 24 | Contact Features: Contact Type Tab | Mating Tab Width .025 INCH | Contact Mating Area Plating Material Tin | Mating Tab Width .64 MM | Contact Size .63mm | Mating Tab Thickness .64 MM | Mating Tab Thickness .025 INCH | Dimensions: Profile Height from PCB .61 INCH | Connector Wid

Download 1318853-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1318853-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

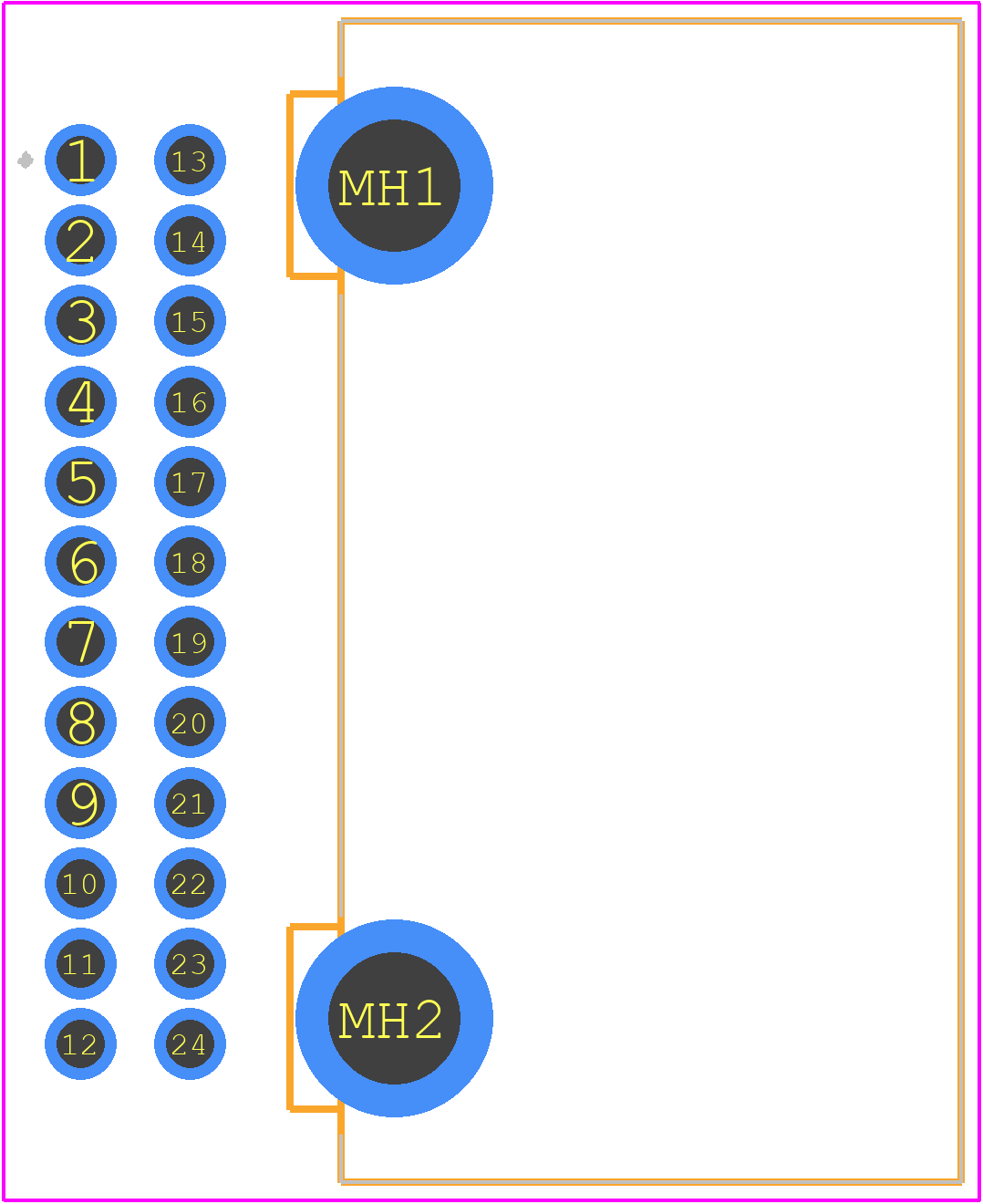

1318853-2 - TE Connectivity PCB footprint - Other - Other - 1318853-2-2
click to zoom
3D Models
1318853-2 - TE Connectivity - 3D model - Other - 1318853-2-2
click to zoom

1318853-2 Details

  • Manufacturer Part Number:

    1318853-2

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    1.252 inch

  • Body Length:

    0.963 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    NATURAL

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mating Contact Pitch:

    0.087 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -30 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Voltage:

    12 V

  • Reference Standard:

    UL

  • Terminal Length:

    0.157 inch

  • Terminal Pitch:

    2.2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    24

1318853-2 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals. However, it's essential to consult the specific application requirements and follow the recommended torque values to ensure reliable connections.
  • Yes, the 1318853-2 connector is designed to withstand vibrations and is suitable for use in high-vibration applications. However, it's crucial to ensure proper mounting and secure fastening to prevent connector damage or disconnection.
  • The operating temperature range for the 1318853-2 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application requirements and potential thermal stresses that may affect the connector's performance.
  • The 1318853-2 connector is designed to be resistant to moisture and corrosion, but it's not intended for use in extremely harsh environments. If your application involves exposure to chemicals or high humidity, consider using additional protective measures, such as conformal coatings or sealing, to ensure the connector's reliability.
  • The 1318853-2 connector is designed to be compatible with other TE Connectivity products, but compatibility with third-party components should be verified before use. Ensure that the connector's specifications and performance meet the requirements of your application and the components you plan to use.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1318853-2 Overview

Use the download button to access the 1318853-2 schematic symbol, PCB footprint, and 3D model.
