- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 132135RP
- Part Number 132135RP
- Manufacturer Amphenol
- Pin Count 5
- Part Category Connector
- Package Category Other

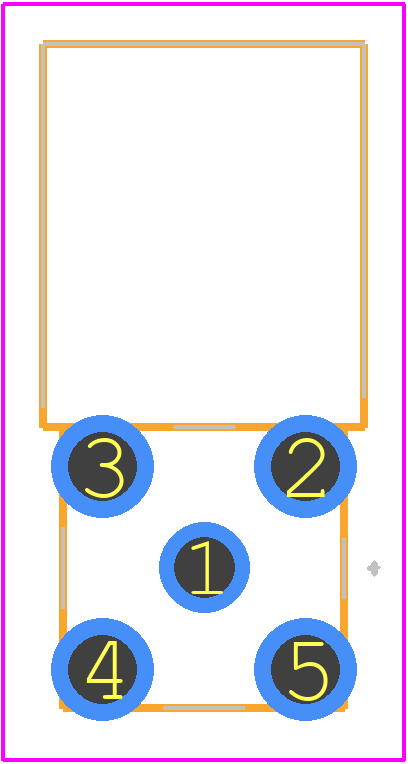

- Footprint Name Other - 132135RP-1
- Released Date Jan 22, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
132135RP Details
-
Manufacturer Part Number:
132135RP
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.10
-
Factory Lead Time:
10 Weeks
-
Manufacturer:
Amphenol Corporation
-
YTEOL:
8
-
Characteristic Impedance:
50 Ω
-
Connector Type:
RF SMA CONNECTOR
-
Coupling Type:
THREADED
132135RP Frequently Asked Questions (FAQs)
-
The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
-
Yes, the 132135RP is designed to withstand high-vibration environments, making it suitable for use in aerospace, defense, and industrial applications.
-
The operating temperature range for the 132135RP is -55°C to 125°C (-65°F to 257°F).
-
Yes, the 132135RP connector is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant.
-
The mating cycle life of the 132135RP connector is 500 cycles minimum.
Trust Checks
Expert Contribution
System Verified
Community Approved
132135RP Overview
Use the download button to access the 132135RP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 13213,
or try a keyword search, such as RF SMA/SSMA Connectors
