132150 - Amphenol

Description: RF Connectors / Coaxial Connectors SMA 4 HOLE FLANGE JK BLUNT POST GOLD

Download 132150 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
132150 - Amphenol - PCB symbol
click to zoom
PCB Footprints

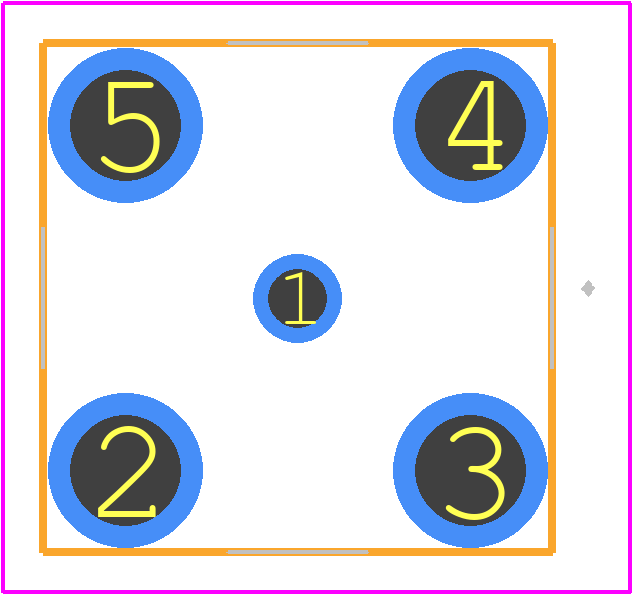

132150 - Amphenol PCB footprint - Other - Other - 132150-2
click to zoom
3D Models
132150 - Amphenol - 3D model - Other - 132150-2
click to zoom

132150 Details

  • Manufacturer Part Number:

    132150

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: MIL-C-39012

  • Body/Shell Style:

    JACK

  • Characteristic Impedance:

    50 Ω

  • Connector Type:

    RF SMA CONNECTOR

  • Contact Finish Mating:

    GOLD

  • Contact Finish Termination:

    GOLD

  • Contact Gender:

    FEMALE

  • Coupling Type:

    THREADED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYTETRAFLUOROETHYLENE

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mounting Style:

    STRAIGHT

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    YES

  • Termination Type:

    SOLDER

132150 Frequently Asked Questions (FAQs)

  • The recommended torque value for the 132150 connector is 10-12 in-lbs (1.1-1.4 Nm) for the screw locks and 15-18 in-lbs (1.7-2.0 Nm) for the nut plates.
  • Yes, the 132150 connector is designed to withstand high-vibration environments. It meets the vibration requirements of MIL-DTL-5015, which includes sinusoidal vibration testing at 10-2000 Hz, 20 G peak acceleration.
  • Yes, the 132150 connector is designed to operate in harsh environments. It has a temperature range of -55°C to 150°C and can withstand humidity up to 95% RH. However, it's essential to follow the recommended derating guidelines for high-temperature applications.
  • The 132150 connector is primarily designed for power and signal applications, but it can support high-speed data transmission up to 1 Gbps. However, it's essential to consider the signal integrity and impedance matching requirements for high-speed applications.
  • Yes, Amphenol recommends cleaning the connector contacts with a soft brush and a mild solvent, such as isopropyl alcohol or a 50/50 mixture of water and white vinegar. Avoid using harsh chemicals or abrasive materials that can damage the contacts or insulators.
