1331200000 - Weidmüller

Description: PCB terminal, 320 V, 24 A, Pitch in mm: 5.08, 2.5 mm², Number of poles: 8, PUSH IN with push button, THT solder connection, 180°, Box

Download 1331200000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1331200000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

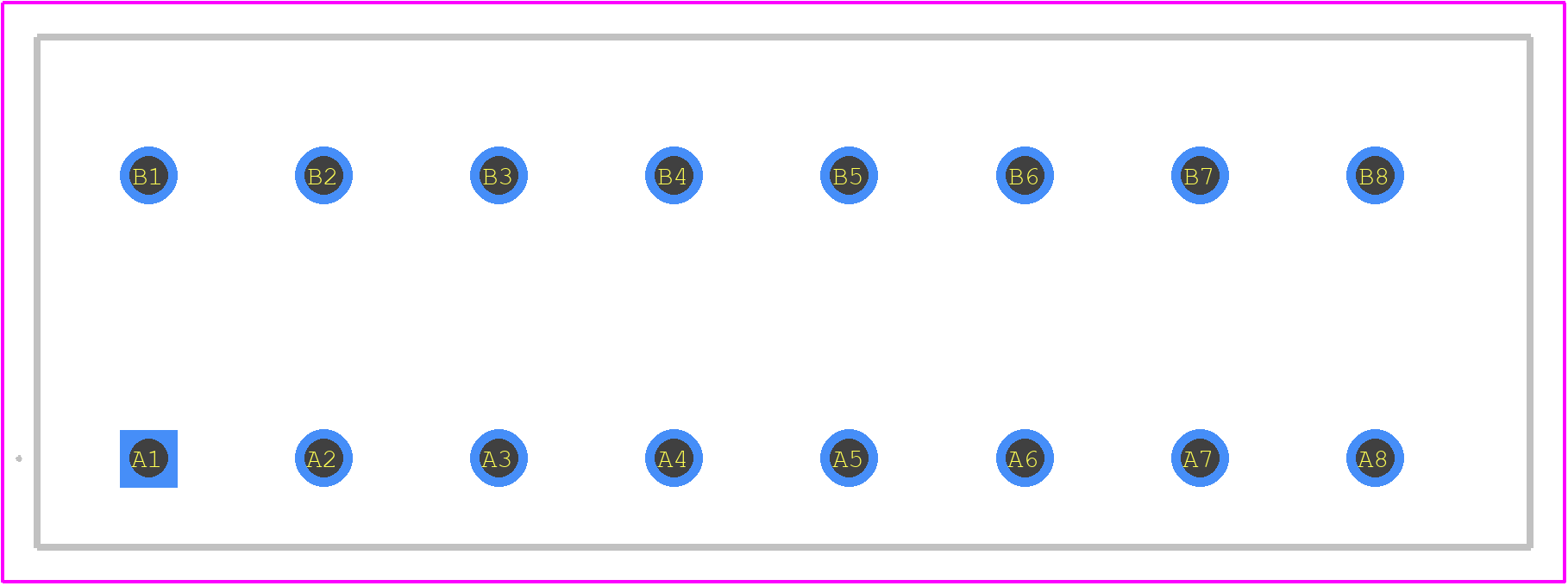

1331200000 - Weidmüller PCB footprint - Other - Other - 1331200000-2
click to zoom
3D Models
1331200000 - Weidmüller - 3D model - Other - 1331200000-2
click to zoom

1331200000 Details

  • Manufacturer Part Number:

    1331200000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, PA

  • Fastening Method:

    PUSH-ON

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; CUL; EAC; IEC; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    12 AWG

1331200000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1331200000 connector is -40°C to 125°C.
  • Yes, the 1331200000 connector is suitable for outdoor use due to its IP67 rating, which provides protection against dust and water ingress.
  • The mating cycle rating for the 1331200000 connector is 500 cycles, ensuring reliable connections over an extended period.
  • Yes, the 1331200000 connector is designed to withstand high-vibration environments, making it suitable for use in industrial and transportation applications.
  • Yes, the 1331200000 connector is compatible with various automation protocols, including PROFINET and EtherNet/IP, making it suitable for use in industrial automation applications.
