1333821 - Phoenix Contact

Description: LPTA 16/ 4-10,0-ZB - Printed circuit board terminal, nominal current: 76 A, rated voltage (III/2): 1000 V, nominal cross section: 16 mm<sup>2</sup>, number of potentials: 4, number of rows: 1, number of positions per row: 4, product range: LPTA 16/, pitch: 10 mm, connection method: Lever Push-in connection, mounting: Wave soldering, conductor/PCB connection direction: 30 °, color: green, Pin layout: Zigzag pinning W, Solder pin [P]: 3.6 mm, type of packaging: packed in cardboard

Download 1333821 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1333821 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

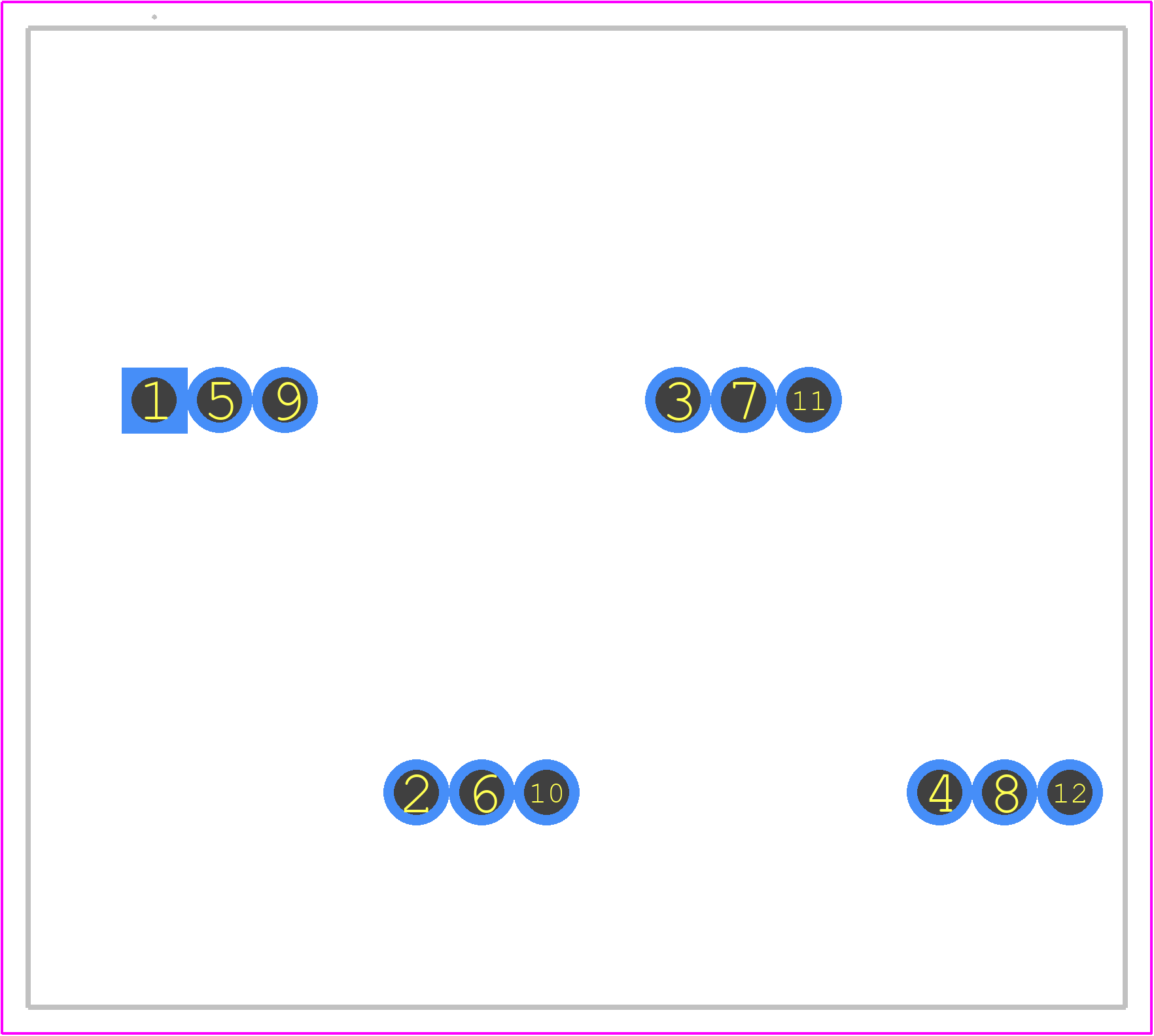

1333821 - Phoenix Contact PCB footprint - Other - Other - 1333821
click to zoom
3D Models
1333821 - Phoenix Contact - 3D model - Other - 1333821
click to zoom

1333821 Details

  • Manufacturer Part Number:

    1333821

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • Additional Feature:

    STANDARD: UL 94V-0, POLYAMIDE

  • Fastening Method:

    PUSH-IN

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    4

  • Rated Current:

    76 A

  • Rated Voltage:

    1000 V

  • Safety Approval:

    CUL;UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    16 mm2

  • Wire Gauge:

    4 AWG

1333821 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type.
  • Yes, the 1333821 connector is designed to withstand high vibrations and is suitable for use in applications with intense mechanical stress.
  • Yes, the 1333821 connector has a IP67 rating, making it suitable for outdoor use and protected against dust and water ingress.
  • The maximum operating temperature range for the 1333821 connector is -40°C to +125°C.
  • No, the 1333821 connector is not suitable for use with aluminum wires. It is recommended to use copper or copper-clad aluminum wires instead.
