Description:The 1337AG device is a low power serial real-time clock (RTC) device with two programmable time-of-day alarms and a programmable square-wave output. Address and data are transferred serially through an I2C bus. The device provides seconds, minutes, hours, day, date, month, and year information. The date at the end of the month is automatically adjusted for months with fewer than 31 days, including corrections for leap year. The clock operates in either the 24-hour or 12-hour format with AM/PM indicator.
Renesas provides a recommended PCB layout guide in their application notes, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
Renesas recommends a specific power sequencing scheme to ensure proper startup and operation. This typically involves powering up the analog supply (VCC) before the digital supply (VDD), and then enabling the clock signal. Refer to the application notes for a detailed power sequencing diagram.
While the datasheet specifies an operating temperature range of -40°C to 85°C, Renesas recommends derating the device's performance at higher temperatures to ensure reliability. Consult the application notes for thermal derating guidelines.
Renesas provides troubleshooting guides and application notes that cover common issues like oscillation or instability. These resources often include step-by-step debugging procedures, oscilloscope capture examples, and design tips to help engineers identify and resolve problems quickly.
Yes, Renesas recommends following specific EMI/EMC design guidelines to minimize electromagnetic interference and ensure compliance with regulatory standards. This includes using shielding, filtering, and proper PCB layout techniques to reduce radiation and susceptibility.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
1337AGDCGI Overview

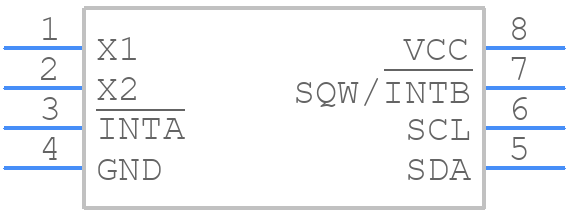

Use the download button to access the 1337AGDCGI schematic symbol, PCB footprint, and 3D model.
