1338-18DCGI - Renesas Electronics

Description: The 1338 is a serial real-time clock (RTC) device that consumes ultra-low power and provides a full binary-coded decimal (BCD) clock/calendar with 56 bytes of battery backed Non-Volatile Static RAM. The clock/calendar provides seconds, minutes, hours, day, date, month, and year information. The clock operates in either the 24-hour or 12-hour format with AM/PM indicator. The end of the month date is automatically adjusted for months with fewer than 31 days, including corrections for leap year. Access to the

Download 1338-18DCGI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

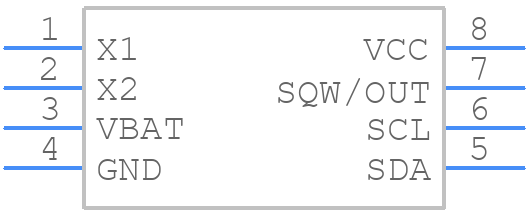

1338-18DCGI - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
1338-18DCGI - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - DCG8_1
click to zoom
3D Models
1338-18DCGI - Renesas Electronics - 3D model - Small Outline Packages - DCG8_1
click to zoom

1338-18DCGI Details

  • Manufacturer Part Number:

    1338-18DCGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    DCG8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-10-01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Clock Frequency-Max:

    0.032768 MHz

  • Information Access Method:

    SERIAL(I2C)

  • Interrupt Capability:

    N

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    8

  • On Chip Data RAM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • RAM (words):

    56

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.015 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.4 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time-Min:

    SECONDS

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Volatile:

    NO

  • Width:

    3.905 mm

  • uPs/uCs/Peripheral ICs Type:

    TIMER, REAL TIME CLOCK

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1338-18DCGI Overview

Use the download button to access the 1338-18DCGI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1338-, or try a keyword search, such as Timers or RTCs
