1338-31DVGI - Renesas Electronics

Description: The 1338 is a serial real-time clock (RTC) device that consumes ultra-low power and provides a full binary-coded decimal (BCD) clock/calendar with 56 bytes of battery backed Non-Volatile Static RAM. The clock/calendar provides seconds, minutes, hours, day, date, month, and year information. The clock operates in either the 24-hour or 12-hour format with AM/PM indicator. The end of the month date is automatically adjusted for months with fewer than 31 days, including corrections for leap year. Access to the

Download 1338-31DVGI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

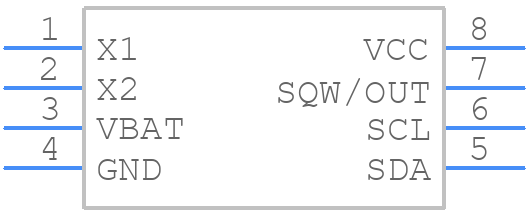

1338-31DVGI - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
1338-31DVGI - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - MSOP
click to zoom
3D Models
1338-31DVGI - Renesas Electronics - 3D model - Small Outline Packages - MSOP
click to zoom

1338-31DVGI Details

  • Manufacturer Part Number:

    1338-31DVGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    DVG8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Date Of Intro:

    2020-10-01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    15

  • Clock Frequency-Max:

    0.032768 MHz

  • Information Access Method:

    SERIAL(I2C)

  • Interrupt Capability:

    N

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    8

  • On Chip Data RAM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.2

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • RAM (words):

    56

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.025 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.45 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time-Min:

    SECONDS

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Volatile:

    NO

  • Width:

    3 mm

  • uPs/uCs/Peripheral ICs Type:

    TIMER, REAL TIME CLOCK

1338-31DVGI Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (R01AN3804EU0100) which includes thermal vias, copper pours, and component placement guidelines to ensure optimal thermal performance.
  • Renesas recommends using an external overcurrent protection circuit, such as a fuse or a dedicated overcurrent protection IC, to prevent damage to the device. The datasheet provides guidelines for selecting the appropriate overcurrent protection component.
  • While the datasheet specifies an operating temperature range of -40°C to 125°C, Renesas recommends operating the device within a range of -20°C to 85°C for optimal performance and reliability.
  • Renesas provides EMC guidelines in their application note (R01AN3804EU0100) which include recommendations for PCB layout, component selection, and shielding to minimize electromagnetic interference.
  • Renesas recommends a power-up sequence of VCC, then VDD, to ensure proper device operation and prevent latch-up. The datasheet provides a detailed power-up sequence diagram.
