Description:The 1339 serial real-time clock (RTC) is a low-power clock/date device with two programmable time-of-day alarms and a programmable square-wave output. Address and data are transferred serially through an I2C bus. The clock/date provides seconds, minutes, hours, day, date, month, and year information. The date at the end of the month is automatically adjusted for months with fewer than 31 days, including corrections for leap year. The clock operates in either the 24-hour or 12-hour format with AM/PM indicato
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes thermal vias, copper pours, and component placement guidelines to ensure optimal thermal performance.
To ensure reliable operation in high-temperature environments, follow the recommended operating conditions, use a suitable thermal interface material, and consider using a heat sink or thermal management system. Additionally, ensure that the device is properly soldered and the PCB is designed with thermal considerations in mind.
The input capacitor (CIN) should be a low-ESR ceramic capacitor with a value between 1-10uF, and the output capacitor (COUT) should be a low-ESR ceramic or tantalum capacitor with a value between 1-22uF. The capacitor selection should be based on the specific application requirements and the recommended values in the datasheet.
To troubleshoot issues with the device, follow a systematic approach: 1) Verify the PCB layout and component placement, 2) Check the input and output voltage levels, 3) Verify the component values and tolerances, 4) Use an oscilloscope to analyze the waveforms, and 5) Consult the datasheet and application notes for guidance. If the issue persists, contact Renesas support for further assistance.
Using a different inductor value or type than recommended can affect the device's performance, efficiency, and stability. It may lead to issues such as oscillation, reduced output voltage, or increased noise. It is essential to follow the recommended inductor values and types in the datasheet to ensure optimal performance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
1339AC-2SRGI Overview

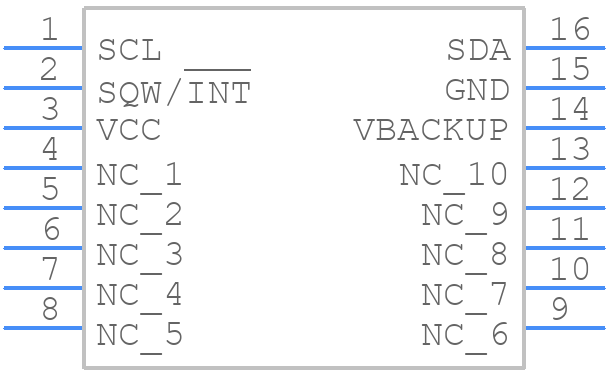

Use the download button to access the 1339AC-2SRGI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1339A,
or try a keyword search, such as Timers or RTCs
