135-3701-301 - Cinch Connectivity Solutions

Description: Cinch Connectors 50Ω Right Angle PCB Mount MMCX Connector, jack, Solder Termination, 0 → 6GHz, RG178/U

Download 135-3701-301 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

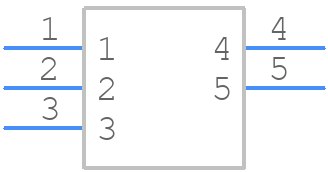

135-3701-301 - Cinch Connectivity Solutions - PCB symbol
click to zoom
PCB Footprints

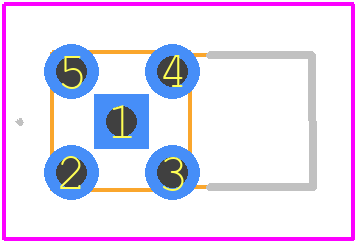

135-3701-301 - Cinch Connectivity Solutions PCB footprint - Other - Other - 135-3701-301-1
click to zoom
3D Models
135-3701-301 - Cinch Connectivity Solutions - 3D model - Other - 135-3701-301-1
click to zoom

135-3701-301 Details

  • Manufacturer Part Number:

    135-3701-301

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Not Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Cinch Connectivity Solutions

  • YTEOL:

    8

  • Body/Shell Style:

    RECEPTACLE

  • Characteristic Impedance:

    50 Ω

  • Connector Type:

    RF MMCX CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    SNAP

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYTETRAFLUOROETHYLENE

  • MIL Conformance:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Operating Frequency-Max:

    6 GHz

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Termination Type:

    SOLDER

135-3701-301 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw threads is 10-12 in-lbs (1.1-1.4 Nm) to ensure proper mating and to prevent damage to the connector.
  • Yes, the 135-3701-301 connector is designed to withstand high-vibration environments. It has a ruggedized design and a secure screw-locking mechanism to ensure reliable connections.
  • Yes, the 135-3701-301 connector is suitable for outdoor use. It has a sealed design and is rated IP67, making it resistant to water and dust ingress.
  • The maximum operating temperature for the 135-3701-301 connector is 125°C (257°F).
  • Yes, the 135-3701-301 connector is designed to be used with a cable assembly. It has a cable clamp and strain relief to secure the cable and prevent damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

135-3701-301 Overview

Use the download button to access the 135-3701-301 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 135-3, or try a keyword search, such as RF MCX/MMCX Connectors
