1358770000 - Weidmüller

Description: PCB connector (board connection), 160 V, 13.4 A, Pitch in mm: 3.50, Number of poles: 10, THT/THR solder connection, Tape

Download 1358770000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1358770000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

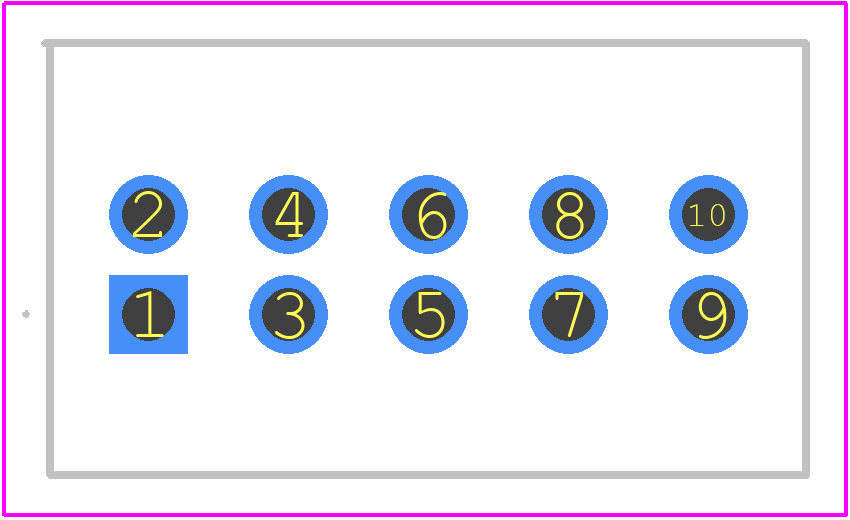

1358770000 - Weidmüller PCB footprint - Other - Other - 1358770000
click to zoom
3D Models
1358770000 - Weidmüller - 3D model - Other - 1358770000
click to zoom

1358770000 Details

  • Manufacturer Part Number:

    1358770000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1358770000 Overview

Use the download button to access the 1358770000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 13587, or try a keyword search, such as Terminals and Terminal Blocks
