1363341 - Phoenix Contact

Description: SPE-T1-M12FRF-90 - SPE PCB connector, design: SPE, degree of protection: IP65/IP67, number of positions: 2, material: LCP, connection method: THR solder connection, cable outlet: straight, color: black, Single Pair Ethernet

Download 1363341 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1363341 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

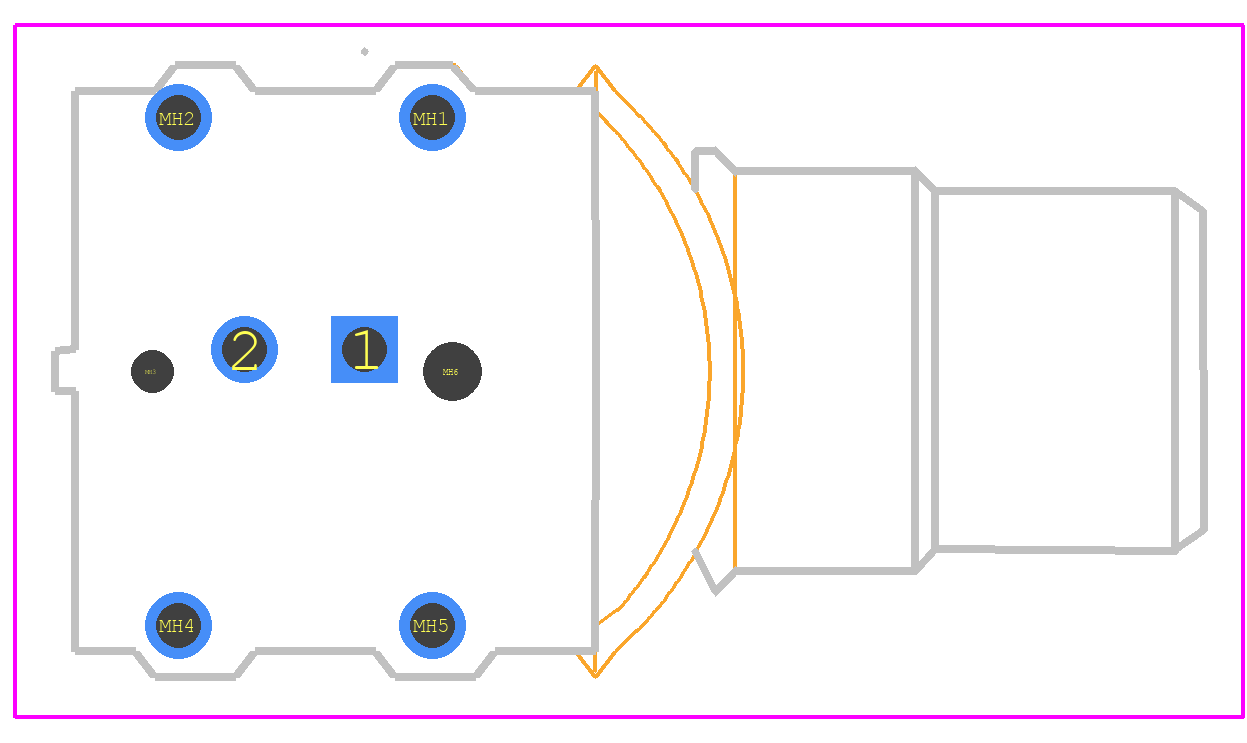

1363341 - Phoenix Contact PCB footprint - Other - Other - 1363341-3
click to zoom
3D Models
1363341 - Phoenix Contact - 3D model - Other - 1363341-3
click to zoom

1363341 Details

  • Manufacturer Part Number:

    1363341

  • Manufacturer:

    Phoenix Contact

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1363341 Overview

Use the download button to access the 1363341 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 13633, or try a keyword search, such as Visible LEDs

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
