1376357-3 - TE Connectivity

Description: Body Features: Primary Product Color Natural | Configuration Features: Number of Sections 1 | Number of Signal Positions 26 | PCB Mount Orientation Horizontal | Number of Rows 2 | Number of Positions 26 | Contact Features: Contact Size .63mm | Mating Tab Thickness .025 INCH | Mating Tab Width 2.3 MM | Contact Mating Area Plating Material Tin | Contact Type Tab | Mating Tab Width .64 MM | Mating Tab Thickness .64 MM | Mating Tab Width .025 INCH | Contact Size 2.28mm | Mating Tab Width .091 INCH | Dimensions:

Download 1376357-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1376357-3 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

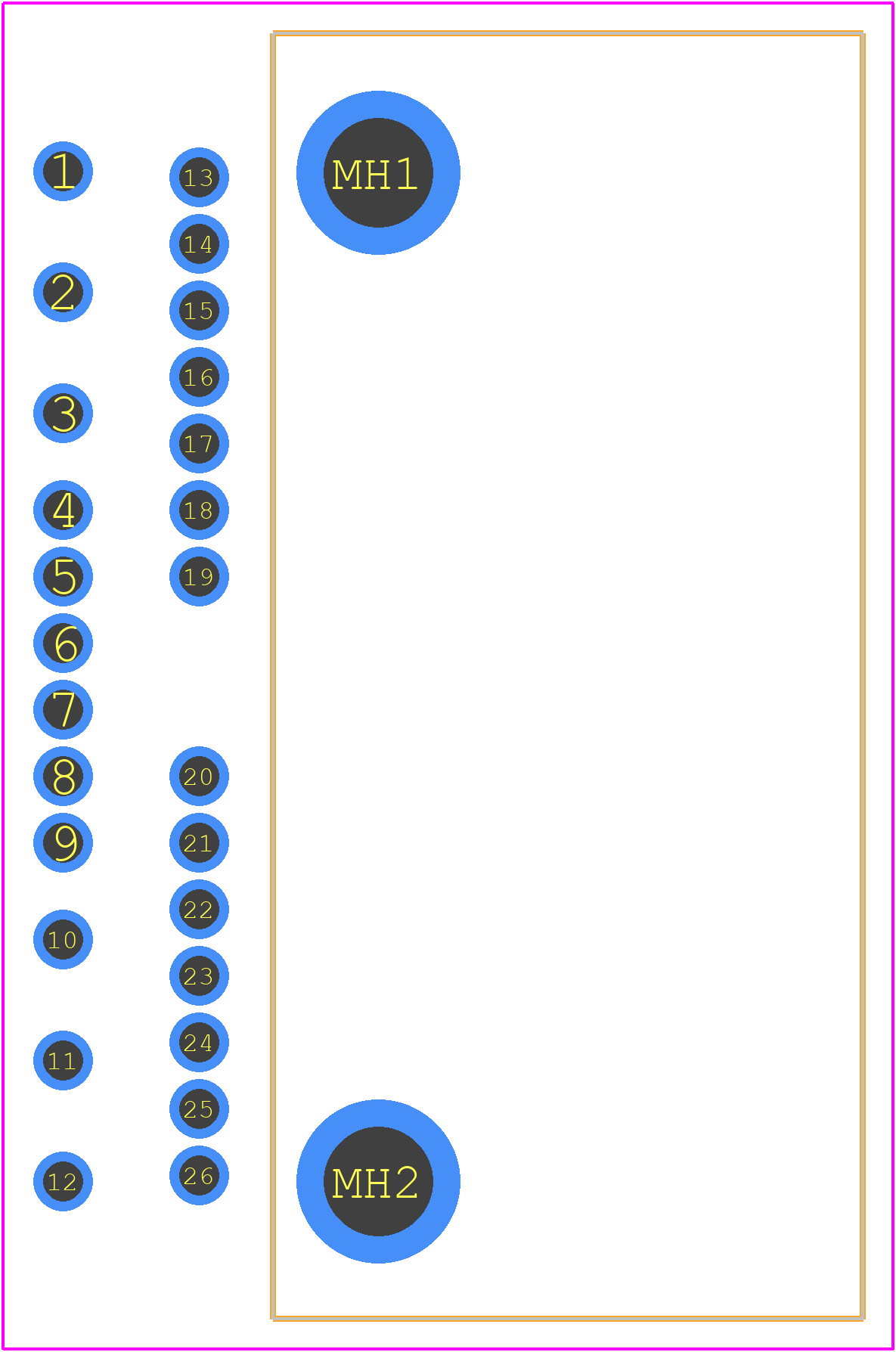

1376357-3 - TE Connectivity PCB footprint - Other - Other - 1376357-3-1
click to zoom
3D Models
1376357-3 - TE Connectivity - 3D model - Other - 1376357-3-1
click to zoom

1376357-3 Details

  • Manufacturer Part Number:

    1376357-3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    1.673 inch

  • Body Length:

    1.141 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    HYBRID

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -30 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Voltage:

    12 V

  • Reference Standard:

    UL

  • Terminal Pitch:

    2.2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    26

  • UL Flammability Code:

    94-HB

1376357-3 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the screw terminals. However, it's essential to consult the specific application requirements and follow the recommended torque values to ensure reliable connections.
  • Yes, the 1376357-3 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Category 2 vibration standard, making it suitable for applications with high vibration levels.
  • The operating temperature range for the 1376357-3 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application requirements and potential derating factors that may affect the connector's performance.
  • Yes, the 1376357-3 connector is designed to withstand harsh environmental conditions, including outdoor applications. It meets the IP67 rating, which means it can withstand temporary immersion in water and exposure to dust and other contaminants.
  • The recommended wire size for the 1376357-3 connector is 24-18 AWG (0.25-1.5 mm²). It's essential to use wires with a suitable insulation material and size to ensure reliable connections and meet the application requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1376357-3 Overview

Use the download button to access the 1376357-3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 13763, or try a keyword search, such as Combination Line Connectors
