1379114-1 - TE Connectivity

Description: Body Features: Connector & Keying Code 1 | Primary Product Color Black | Configuration Features: Number of Rows 2 | Number of Sections 1 | Number of Signal Positions 12 | PCB Mount Orientation Vertical | Number of Positions 12 | Contact Features: Contact Mating Area Plating Material Tin | Mating Tab Thickness .63 MM | Mating Tab Width .63 MM | Contact Type Tab | Mating Tab Thickness .025 INCH | Contact Size .63mm | Mating Tab Width .025 INCH | Dimensions: Connector Length 1.587 INCH | Profile Height from PC

Download 1379114-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

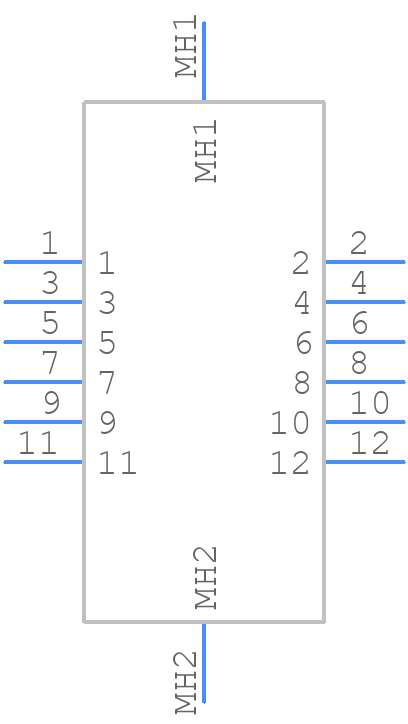

1379114-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

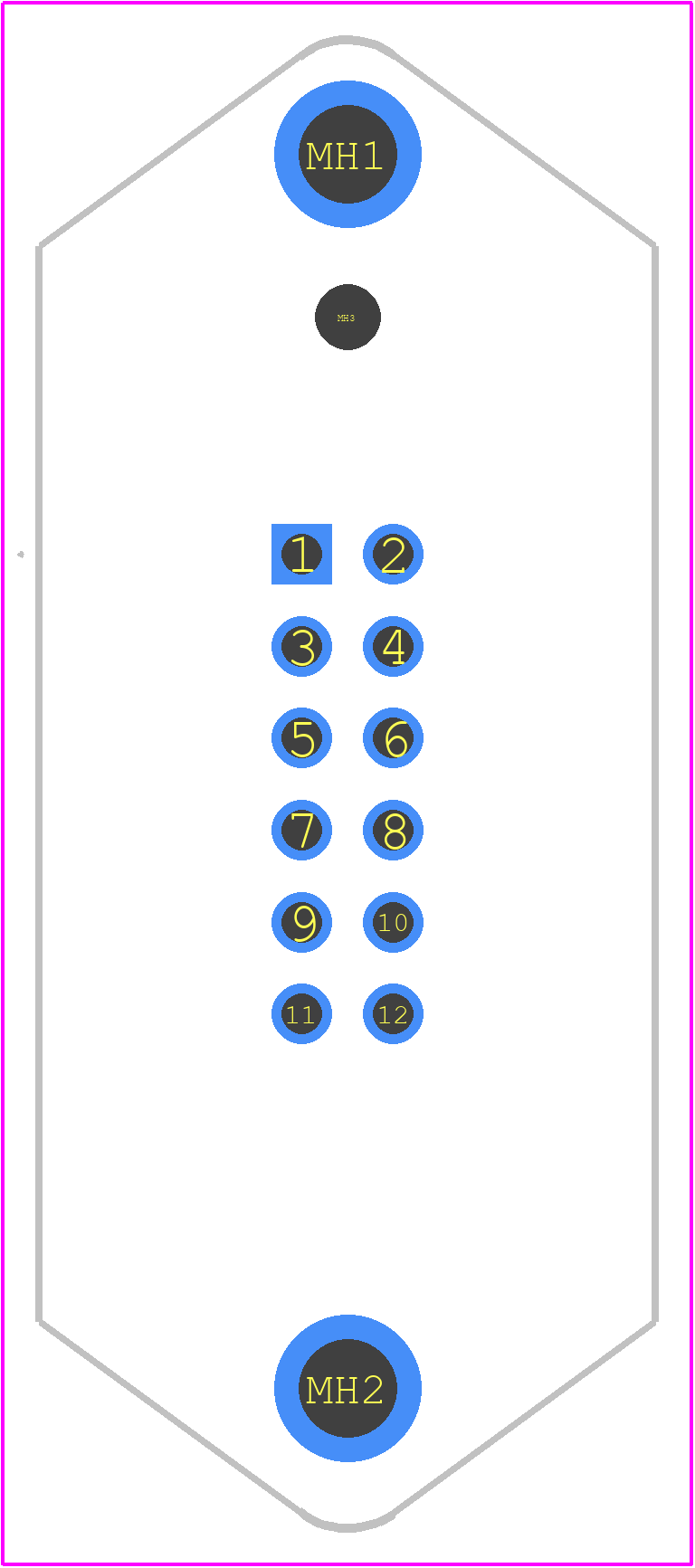

1379114-1 - TE Connectivity PCB footprint - Other - Other - 1379114-1-5
click to zoom
3D Models
1379114-1 - TE Connectivity - 3D model - Other - 1379114-1-5
click to zoom

1379114-1 Details

  • Manufacturer Part Number:

    1379114-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    21 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Board Mounting Option:

    BOARD LOCK

  • Body Breadth:

    0.669 inch

  • Body Depth:

    0.799 inch

  • Body Length:

    1.587 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Arrangement:

    S0P12

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    50000000 Ω

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    PANEL

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Voltage:

    12 V

  • Reference Standard:

    UL

  • Shell Material:

    GLASS FILLED SYNDIOTACTIC POLYSTYRENE

  • Terminal Length:

    0.134 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    12

1379114-1 Frequently Asked Questions (FAQs)

  • The recommended torque specification for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs). It's essential to follow this specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 1379114-1 connector is designed to withstand high-vibration environments. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 1379114-1 connector has a IP67 rating, making it suitable for outdoor or harsh environmental applications. However, it's essential to follow proper sealing and installation procedures to maintain the IP67 rating.
  • The 1379114-1 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.
  • Yes, the 1379114-1 connector is designed to be compatible with other TE Connectivity products and accessories. However, it's essential to verify compatibility and follow proper installation procedures to ensure reliable connections.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1379114-1 Overview

Use the download button to access the 1379114-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 13791, or try a keyword search, such as Combination Line Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
