1379604-1 - TE Connectivity

Description: Body Features: Primary Product Color Black | Connector & Keying Code 1 | Configuration Features: Number of Positions 24 | Number of Sections 1 | PCB Mount Orientation Vertical | Number of Rows 2 | Number of Signal Positions 24 | Contact Features: Mating Tab Thickness .025 INCH | Contact Mating Area Plating Material Tin | Mating Tab Width .025 INCH | Mating Tab Thickness .64 MM | Mating Tab Width .64 MM | Contact Size .63mm | Contact Type Tab | Dimensions: Profile Height from PCB .795 INCH | Connector Length

Download 1379604-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1379604-1 - TE Connectivity - PCB symbol
click to zoom

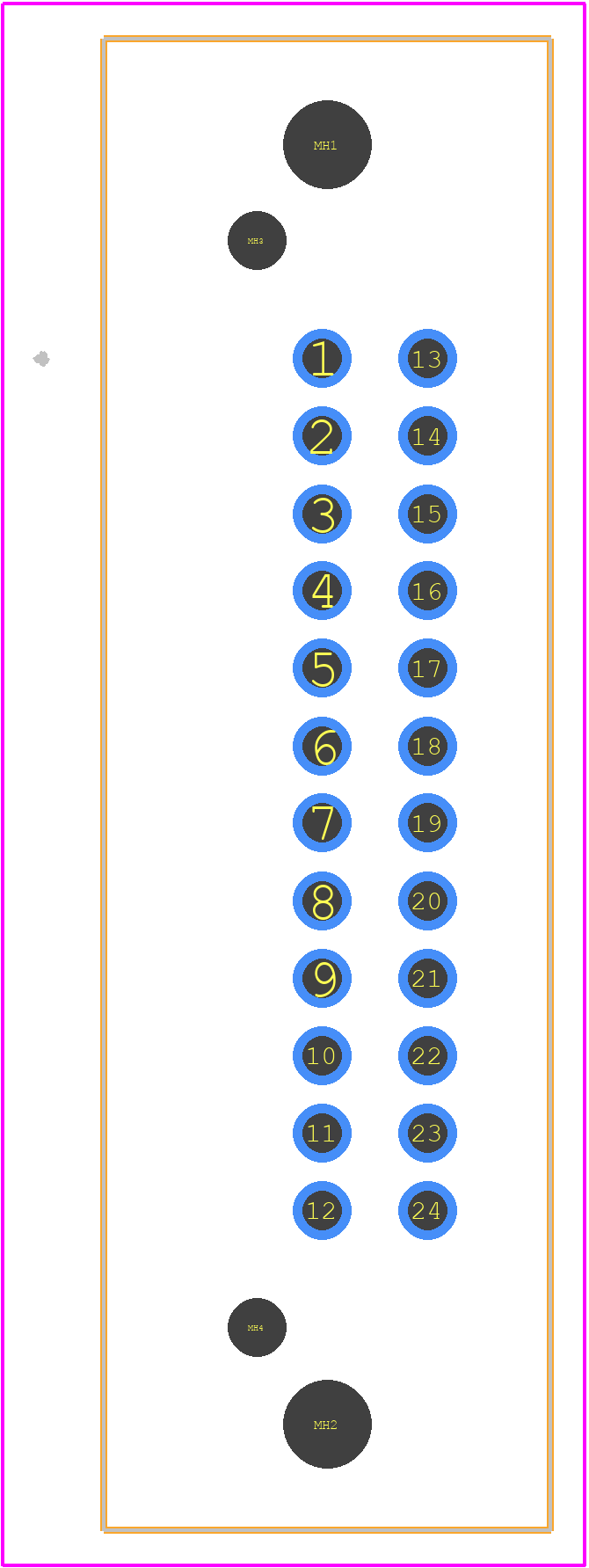

PCB Footprints
1379604-1 - TE Connectivity PCB footprint - Other - Other - 1379604-1-1
click to zoom
3D Models
1379604-1 - TE Connectivity - 3D model - Other - 1379604-1-1
click to zoom

1379604-1 Details

  • Manufacturer Part Number:

    1379604-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Board Mounting Option:

    BOARD LOCK

  • Body Breadth:

    0.5 inch

  • Body Length:

    1.669 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Voltage:

    13.5 V

  • Terminal Pitch:

    2.2 mm

  • Termination Type:

    SOLDER

1379604-1 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 1379604-1 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as industrial control systems, transportation, and more.
  • The 1379604-1 connector has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's essential to ensure proper sealing and protection when using the connector in outdoor environments.
  • The 1379604-1 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of applications, from industrial control systems to automotive and more.
  • While the datasheet specifies AWG 20-24 wire sizes, it's possible to use the connector with other wire sizes. However, it's essential to consult with TE Connectivity or a qualified engineer to ensure the connector is compatible with the desired wire size and to determine any necessary modifications or adjustments.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1379604-1 Overview

Use the download button to access the 1379604-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 13796, or try a keyword search, such as Combination Line Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
