1379731-1 - TE Connectivity

Description: Body Features: Connector & Keying Code 1 | Primary Product Color Black | Configuration Features: PCB Mount Orientation Horizontal | Number of Rows 2 | Number of Positions 18 | Contact Features: Contact Mating Area Plating Material Tin | Contact Type Tab | Mating Tab Thickness .025 INCH | Mating Tab Width .025 INCH | Contact Size .63mm | Mating Tab Thickness .63 MM | Mating Tab Width .63 MM | Dimensions: Profile Height from PCB 17 MM | Profile Height from PCB .669 INCH | Electrical Characteristics: Nominal V

Download 1379731-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1379731-1 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

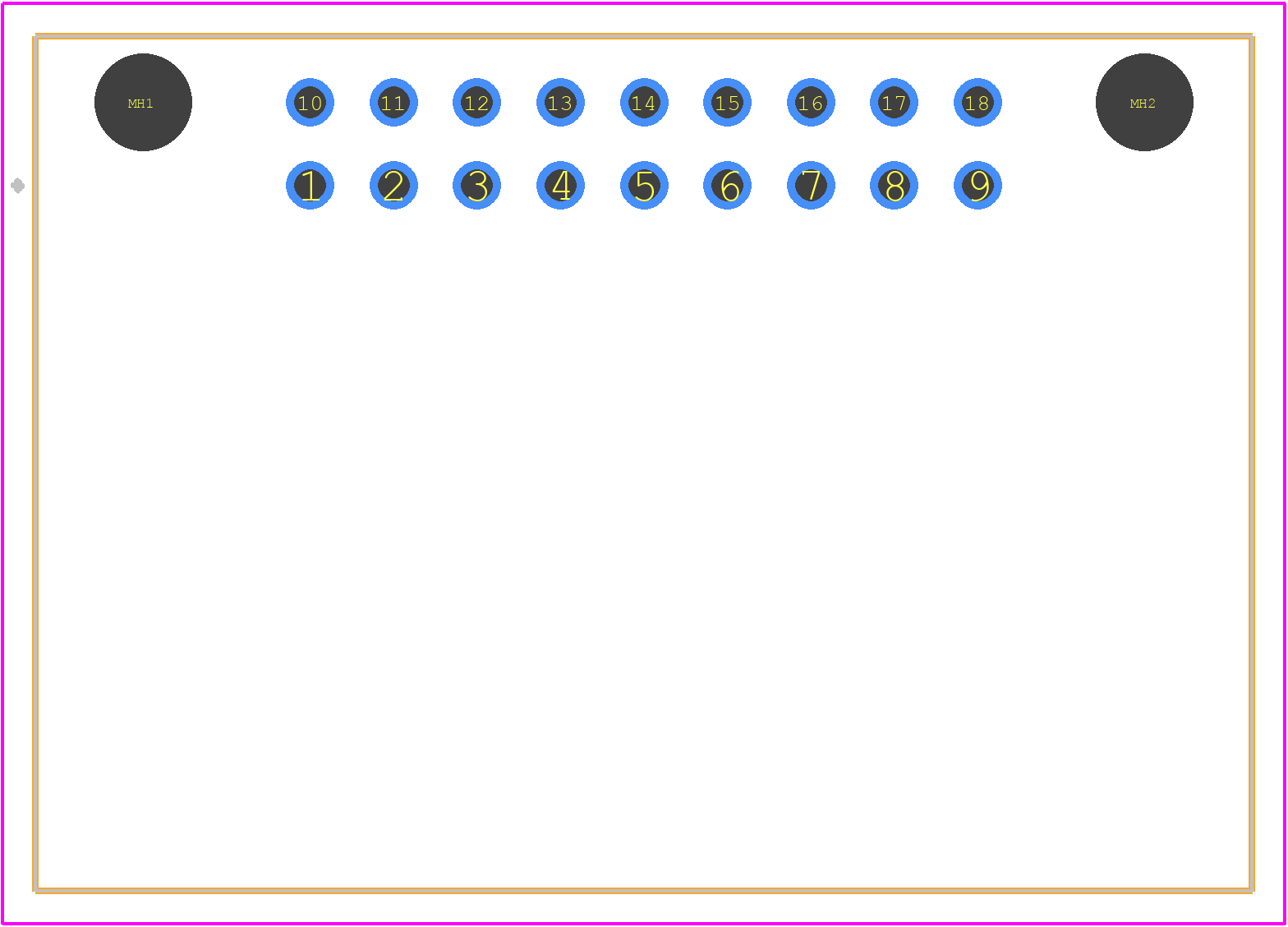

1379731-1 - TE Connectivity PCB footprint - Other - Other - 1379731-1-1
click to zoom
3D Models
1379731-1 - TE Connectivity - 3D model - Other - 1379731-1-1
click to zoom

1379731-1 Details

  • Manufacturer Part Number:

    1379731-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    27 Weeks, 4 Days

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    0.669 inch

  • Body Depth:

    0.944 inch

  • Body Length:

    1.456 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    PANEL

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Voltage:

    12 V

  • Reference Standard:

    UL

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    18

  • UL Flammability Code:

    94-HB

1379731-1 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). This information can be found in the TE Connectivity application notes or by contacting their technical support.
  • Yes, the 1379731-1 connector is designed to withstand high-vibration environments. It meets the IEC 61373 standard for vibration resistance, which involves testing at 10-2000 Hz with an amplitude of 10 mm.
  • The 1379731-1 connector has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's essential to ensure the connector is properly sealed and installed to maintain its environmental rating.
  • The 1379731-1 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). This range is suitable for most industrial and transportation applications.
  • No, the 1379731-1 connector is designed for use with wire gauges 24 AWG to 30 AWG. Using a larger wire gauge may not provide a reliable connection and could compromise the connector's performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1379731-1 Overview

Use the download button to access the 1379731-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 13797, or try a keyword search, such as Combination Line Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
