- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 1393162-5
- Part Number 1393162-5
- Manufacturer TE Connectivity
- Pin Count 12
- Part Category Relay or Contactor
- Package Category Other

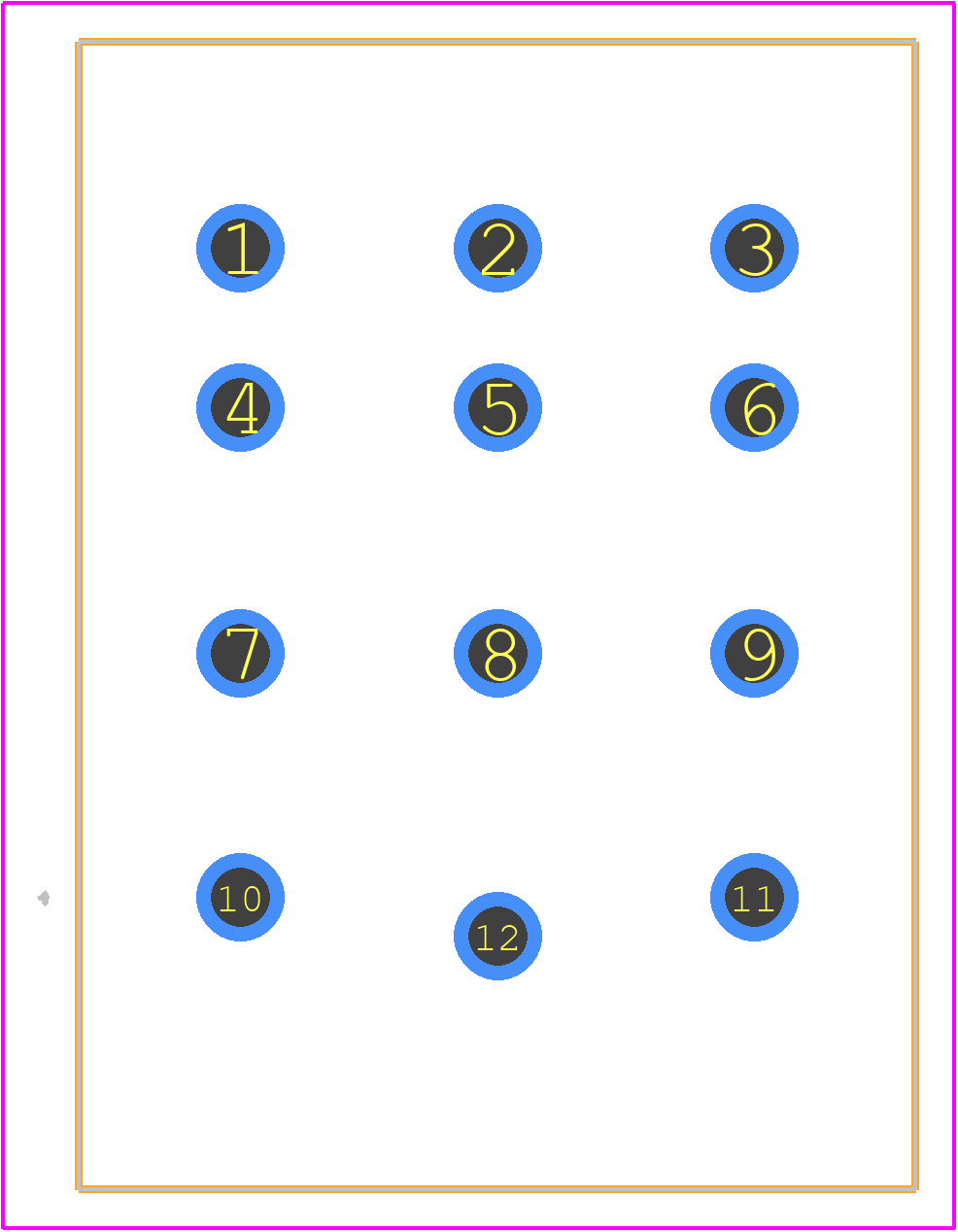

- Footprint Name Other - 1393162-5-2
- Released Date May 29, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
1393162-5 Details
-
Manufacturer Part Number:
1393162-5
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Factory Lead Time:
14 Weeks, 5 Days
-
Manufacturer:
TE Connectivity
-
YTEOL:
7
-
Body Breadth:
0.846 inch
-
Body Depth:
0.453 inch
-
Body Length:
1.16 inch
1393162-5 Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
-
Yes, the 1393162-5 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as rail, industrial, and automotive.
-
The 1393162-5 connector has a IP67 rating, which means it is protected against dust and water ingress. However, it's essential to ensure proper sealing and protection when using the connector in outdoor environments to maintain its performance and reliability.
-
The 1393162-5 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
-
Yes, the 1393162-5 connector is designed to be compatible with other TE Connectivity products, such as cable assemblies and PCB connectors. However, it's essential to verify compatibility and ensure proper mating and performance before using the connector with other products.
Trust Checks
Expert Contribution
System Verified
Community Approved
1393162-5 Overview
Use the download button to access the 1393162-5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 13931,
or try a keyword search, such as Sockets and Chip Carriers
