- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 1393586-6
- Part Number 1393586-6
- Manufacturer TE Connectivity
- Pin Count 10
- Part Category Connector
- Package Category Other
- Footprint Name Other - 1393586-6-4
- Released Date Dec 7, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
1393586-6 Details
-
Manufacturer Part Number:
1393586-6
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
ROHS COMPLIANT
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
TE Connectivity
-
YTEOL:
0
-
Body Breadth:
0.393 inch
-
Body Depth:
0.496 inch
-
Body Length:
0.866 inch
1393586-6 Frequently Asked Questions (FAQs)
-
The recommended torque specification for the 1393586-6 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs) for the screw locks, and 0.2-0.5 Nm (1.8-4.4 in-lbs) for the jack screws.
-
Yes, the 1393586-6 connector is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10 G peak acceleration.
-
Yes, the 1393586-6 connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C (-40°F to 257°F) and a humidity rating of 95% RH at 40°C (104°F).
-
The 1393586-6 connector has a mating cycle life of 500 cycles minimum, making it suitable for applications that require frequent mating and unmating.
-
Yes, the 1393586-6 connector is designed to be compatible with other TE Connectivity products, including cable assemblies and PCB connectors, allowing for flexible and customizable solutions.
Trust Checks
Community Provided
System Verified
Community Approved
1393586-6 Overview

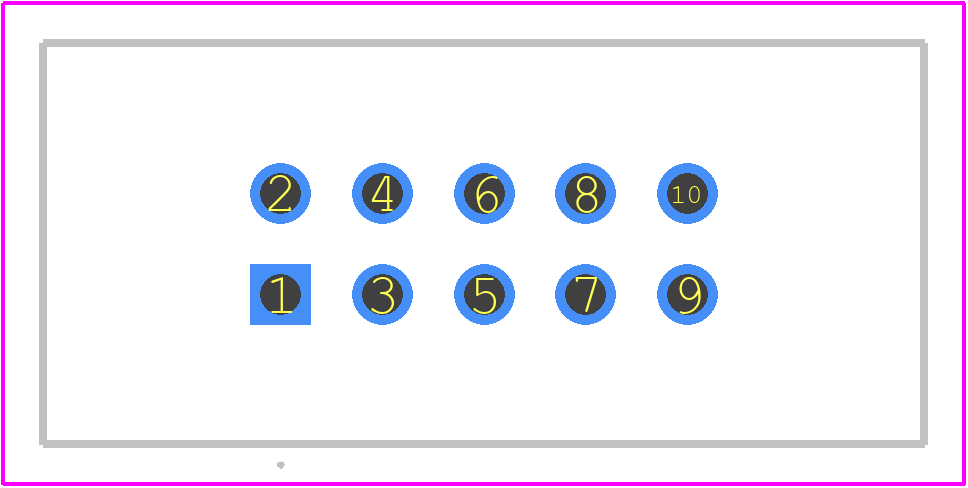

Use the download button to access the 1393586-6 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 13935,
or try a keyword search, such as Headers and Edge Type Connectors
