14-3518-10 - ARIES

Description: IC & Component Sockets 14P SOLDER TIN/GLD

Download 14-3518-10 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
14-3518-10 - ARIES - PCB symbol
click to zoom
PCB Footprints

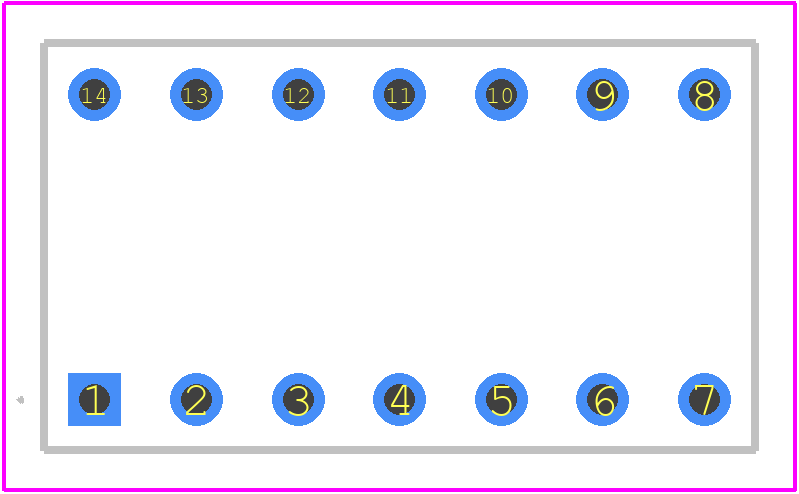

14-3518-10 - ARIES PCB footprint - Other - Other - 14-3518-10-1
click to zoom
3D Models
14-3518-10 - ARIES - 3D model - Other - 14-3518-10-1
click to zoom

14-3518-10 Details

  • Manufacturer Part Number:

    14-3518-10

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Aries Electronics Inc

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0

  • Body Breadth:

    0.4 inch

  • Body Depth:

    0.165 inch

  • Body Length:

    1.4 inch

  • Contact Configuration:

    RECTANGLE

  • Contact Finish Mating:

    GOLD (10) OVER NICKEL (50)

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Material:

    BRASS

  • Contact Style:

    RND PIN-SKT

  • Current Rating:

    3 A

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP14

  • Housing Material:

    NYLON46

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    14

  • Operating Temperature-Max:

    105 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    0.30000000000000004 mm

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

14-3518-10 Frequently Asked Questions (FAQs)

  • The recommended storage condition for the 14-3518-10 is in a dry, cool place, away from direct sunlight and moisture, with a temperature range of 20°C to 30°C (68°F to 86°F) and humidity below 60%.
  • Yes, the 14-3518-10 is designed to withstand moderate vibration levels, but it's recommended to consult with Aries Electronics Inc or a qualified engineer to determine the suitability of the component for specific high-vibration applications.
  • The recommended soldering temperature for the 14-3518-10 is between 220°C to 240°C (428°F to 464°F), and the recommended soldering time is 2-3 seconds. However, it's recommended to consult the soldering guidelines provided by Aries Electronics Inc or a qualified engineer for specific application requirements.
  • Yes, the 14-3518-10 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the European Union's regulations for environmental sustainability.
  • The typical lead time for delivery of the 14-3518-10 varies depending on the quantity, location, and availability. It's recommended to consult with Aries Electronics Inc or an authorized distributor for the most up-to-date lead time information.
