- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 14-431.036
- Part Number 14-431.036
- Manufacturer EAO
- Pin Count 6
- Part Category Switch
- Package Category Other
- Footprint Name Other - 14-431.036-1
- Released Date Jul 24, 2023
- Last Modified Date Jul 24, 2023 3:50 AM UTC
- Pinout / Pin List Click Here (Member Only)
14-431.036 Details
-
Manufacturer Part Number:
14-431.036
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Switzerland
-
ECCN Code:
EAR99
-
HTS Code:
8536.50.70.00
-
Manufacturer:
EAO AG
-
Switch Type:
PUSHBUTTON SWITCH
14-431.036 Frequently Asked Questions (FAQs)
-
The recommended torque for mounting the 14-431.036 switch is 0.4 Nm to 0.6 Nm (0.3 in-lbs to 0.5 in-lbs) to ensure secure fastening without damaging the switch or the panel.
-
The 14-431.036 switch is not designed for use in hazardous locations. It does not have any explosion-proof or intrinsically safe certifications. If you need a switch for a hazardous location, you should consider a different product.
-
The operating temperature range for the 14-431.036 switch is -25°C to 70°C (-13°F to 158°F). It can be stored at temperatures between -40°C and 85°C (-40°F to 185°F).
-
The 14-431.036 switch is designed for indoor use only. It does not have any IP (Ingress Protection) rating or other certifications for outdoor use. If you need a switch for outdoor use, you should consider a different product with the appropriate environmental ratings.
-
Yes, EAO AG offers customization options for their switches, including different actuators and legends. You should contact EAO AG directly to discuss your specific requirements and obtain a quote for the customized switch.
Trust Checks
Community Provided
System Verified
Community Approved
14-431.036 Overview

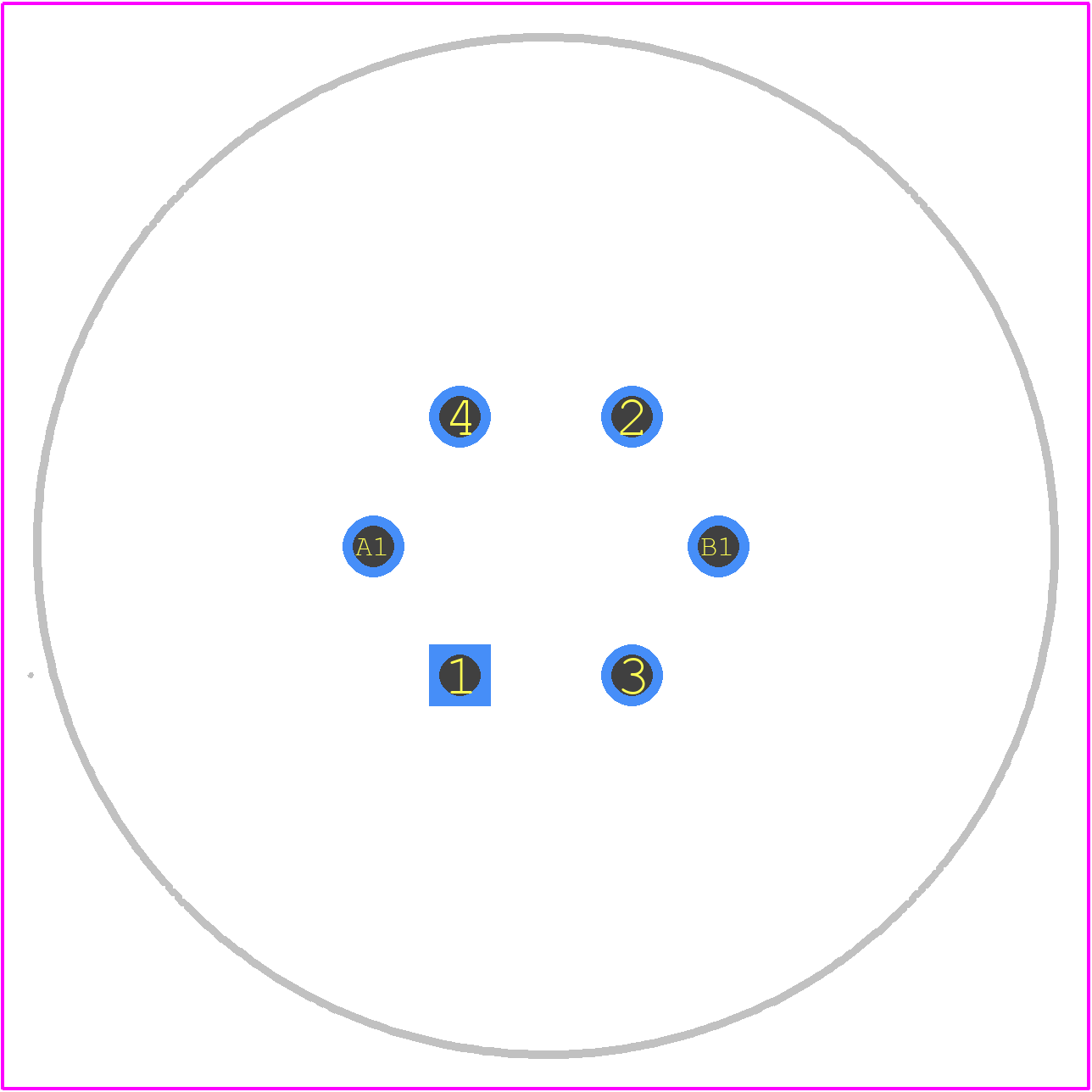

Use the download button to access the 14-431.036 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 14-43,
or try a keyword search, such as Pushbutton Switches
