14-600-10 - ARIES

Description: Aries Electronics 2.54mm Pitch 14 Way,Through Hole Mount PCB Header, Tin over Nickel Plated Contacts, 2A

Download 14-600-10 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
14-600-10 - ARIES - PCB symbol
click to zoom
PCB Footprints

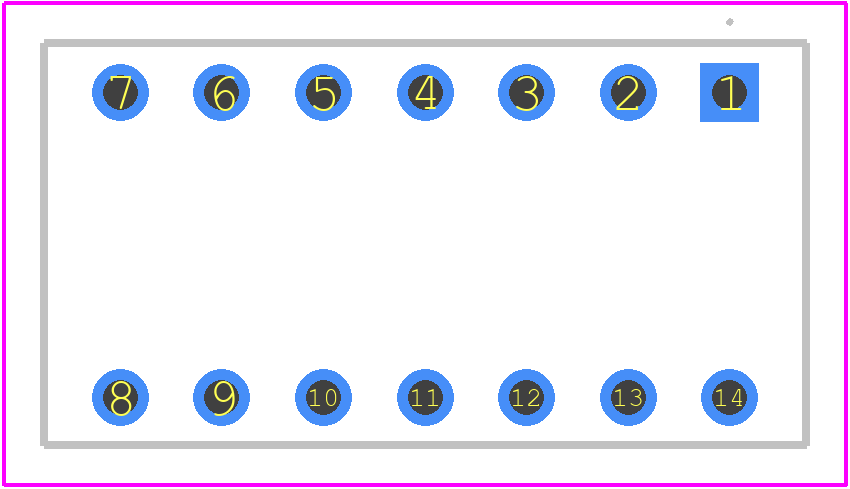

14-600-10 - ARIES PCB footprint - Other - Other - 14-600-10-1
click to zoom
3D Models
14-600-10 - ARIES - 3D model - Other - 14-600-10-1
click to zoom

14-600-10 Details

  • Manufacturer Part Number:

    14-600-10

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.51

  • Manufacturer:

    Aries Electronics Inc

  • YTEOL:

    7

  • Connector Type:

    DIP CONNECTOR

  • Contact Finish Mating:

    TIN

  • Contact Finish Termination:

    TIN

  • Contact Gender:

    MALE

  • Contact Material:

    BRASS

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    14

  • UL Flammability Code:

    94V-0
