14-820-90T - ARIES

Description: CONN IC DIP SOCKET 14POS TIN

Download 14-820-90T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
14-820-90T - ARIES - PCB symbol
click to zoom
PCB Footprints

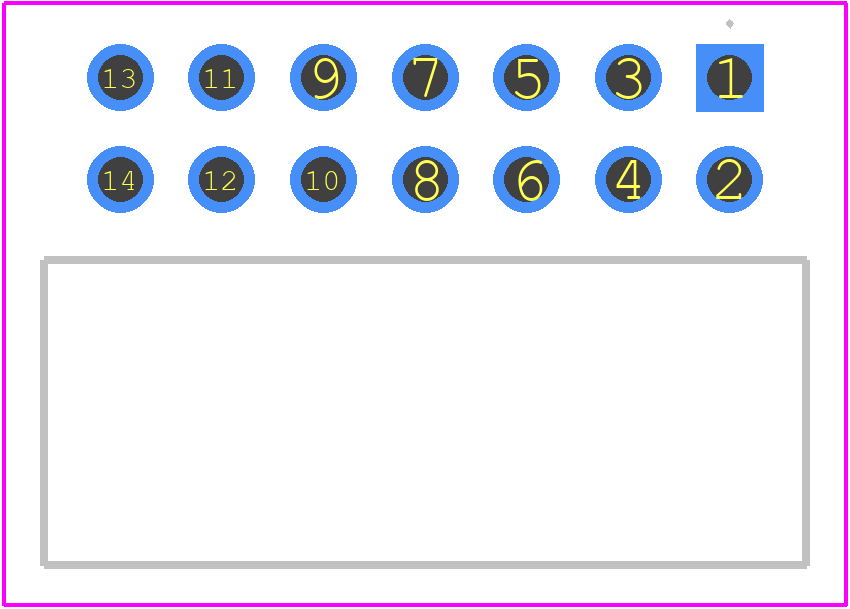

14-820-90T - ARIES PCB footprint - Other - Other - 14-820-90T-2
click to zoom
3D Models
14-820-90T - ARIES - 3D model - Other - 14-820-90T-2
click to zoom

14-820-90T Details

  • Manufacturer Part Number:

    14-820-90T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Aries Electronics Inc

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0

  • Body Breadth:

    0.4 inch

  • Body Depth:

    0.48 inch

  • Body Length:

    0.75 inch

  • Contact Finish Mating:

    MATTE TIN (200) OVER NICKEL (50)

  • Contact Finish Termination:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Style:

    SQ PIN-SKT

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP14

  • Housing Material:

    NYLON46

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Mounting Style:

    RIGHT ANGLE

  • Number of Contacts:

    14

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    0.1 mm

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

14-820-90T Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.0 in-lbs (0.056-0.113 Nm) to ensure secure connections.
  • Yes, the 14-820-90T is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for mounting and securing the connector to ensure reliable performance.
  • The 14-820-90T is rated for operation in temperatures ranging from -40°C to 105°C and can withstand humidity up to 95% RH. However, it's essential to follow the manufacturer's guidelines for environmental considerations and potential derating.
  • The 14-820-90T is designed for use with 20-24 AWG wire. It's recommended to use a wire with a temperature rating of at least 105°C and a insulation material compatible with the connector's plastic material.
  • The 14-820-90T is rated for a maximum current of 3A per contact. For high-current applications, it's recommended to consult with the manufacturer or a qualified engineer to ensure the connector can handle the required current and to discuss potential derating or custom solutions.
