14011013101000 - HARTING

Description: har-flexicon, 10pin Terminal Block w/ push-in spring cage termination - 24-20AWG, vertical SMT pcb mount, 6Amps, pitch 2.54mm, 250pc reel

Download 14011013101000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

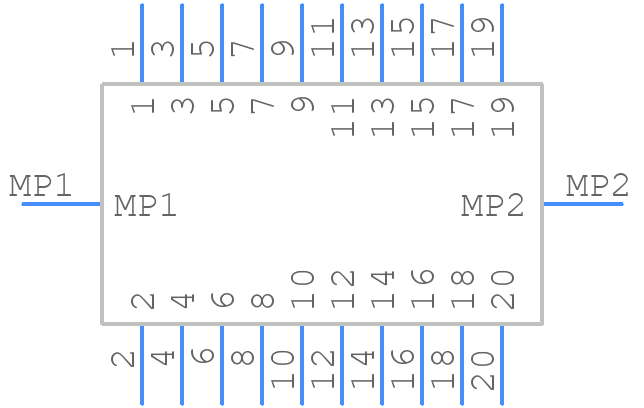

14011013101000 - HARTING - PCB symbol
click to zoom
PCB Footprints

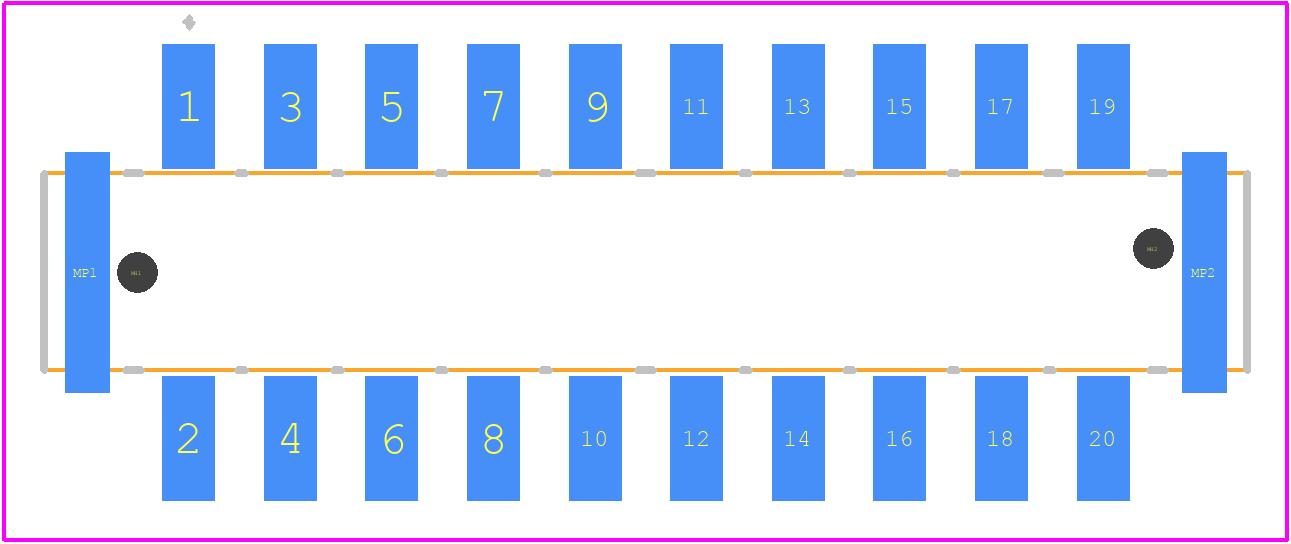

14011013101000 - HARTING PCB footprint - Other - Other - 14011013101000
click to zoom
3D Models
14011013101000 - HARTING - 3D model - Other - 14011013101000
click to zoom

14011013101000 Details

  • Manufacturer Part Number:

    14011013101000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    standard: 94v-0, LIQUID CRYSTAL POLYMER

  • Fastening Method:

    PUSH-IN

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    10

  • Rated Current:

    6 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    CSA; CUL; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    0.5 mm2

  • Wire Gauge:

    20 AWG

14011013101000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 14011013101000 connector is -40°C to 125°C, according to HARTING's specifications.
  • Yes, the 14011013101000 connector is designed to withstand high-vibration environments, making it suitable for use in industrial, transportation, and other applications where vibration is a concern.
  • The 14011013101000 connector is designed to be resistant to harsh environments, including high humidity and exposure to certain chemicals. However, it's essential to consult HARTING's documentation and perform necessary testing to ensure the connector meets the specific requirements of your application.
  • The 14011013101000 connector has a mating cycle life of at least 500 cycles, according to HARTING's specifications. This means it can withstand repeated connections and disconnections without compromising its performance.
  • The 14011013101000 connector is designed to be compatible with other HARTING products and components. However, it's essential to verify compatibility with third-party components before integrating them into your system.
