The recommended torque value is typically between 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material. It's essential to consult the HARTING application notes or contact their technical support for specific guidance.
Yes, the 14020414101000 connector is designed to withstand vibrations and shocks according to IEC 61373 Cat 1, Class B. However, it's crucial to ensure proper mounting and screwing to prevent damage or disconnection.
The 14020414101000 connector has an IP67 rating, making it suitable for outdoor and harsh environmental applications. However, it's essential to consider additional protection measures, such as conformal coating or potting, to ensure reliable operation in extreme conditions.
The 14020414101000 connector is designed to be compatible with other HARTING connectors. While it may be possible to use it with other manufacturers' mating connectors, compatibility and reliability cannot be guaranteed. It's recommended to use HARTING-approved mating connectors for optimal performance.
The 14020414101000 connector is rated for operation in temperatures ranging from -40°C to +125°C. However, it's essential to consider derating and potential performance degradation at extreme temperatures.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
14020414101000 Overview

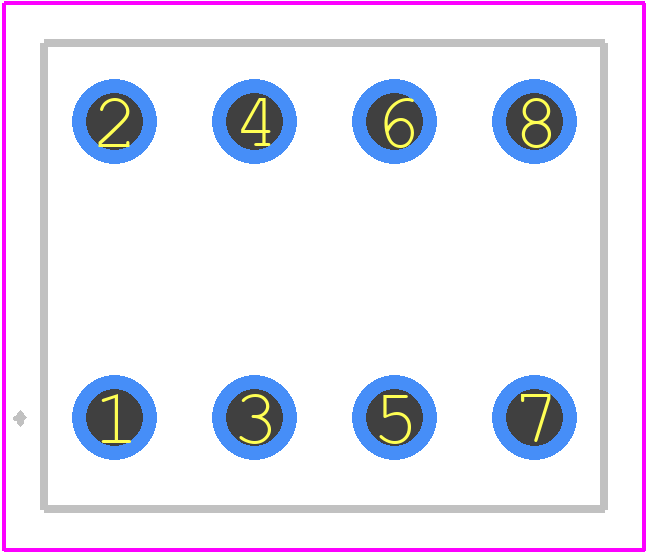

Use the download button to access the 14020414101000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 14020,
or try a keyword search, such as Terminals and Terminal Blocks
