Part Image

14020816404000 - HARTING

Description: har-flexicon, 8pin Terminal Block w/ screw termination - 30-12AWG, horizontal pcb mount (THR/SMC), 17.5Amps, pitch 5.00mm

Download 14020816404000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
14020816404000 - HARTING - PCB symbol
click to zoom
PCB Footprints

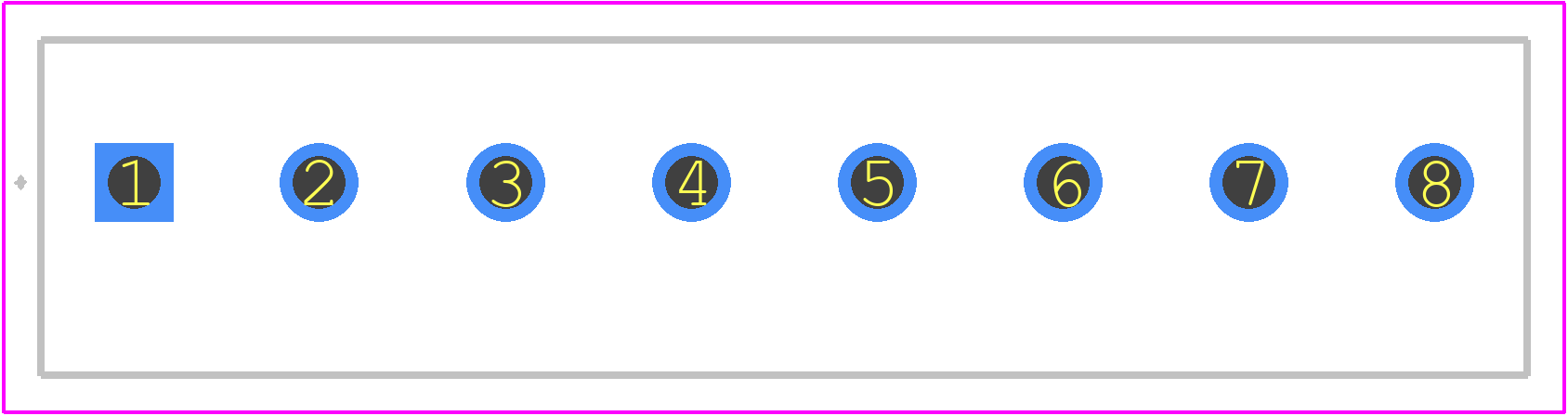

14020816404000 - HARTING PCB footprint - Other - Other - 14020816404000-3
click to zoom
3D Models
14020816404000 - HARTING - 3D model - Other - 14020816404000-3
click to zoom

14020816404000 Details

  • Manufacturer Part Number:

    14020816404000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Italy

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    HARTING Technology Group

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

14020816404000 Overview

Use the download button to access the 14020816404000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 14020, or try a keyword search, such as Terminals and Terminal Blocks
