Part Image

14021014101000 - HARTING

Description: har-flexicon, 10pin Terminal Block w/ push-in spring cage termination - 30-16AWG, vertical pcb mount (THR/SMC), 10Amps, pitch 3.50mm

Download 14021014101000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
14021014101000 - HARTING - PCB symbol
click to zoom
PCB Footprints

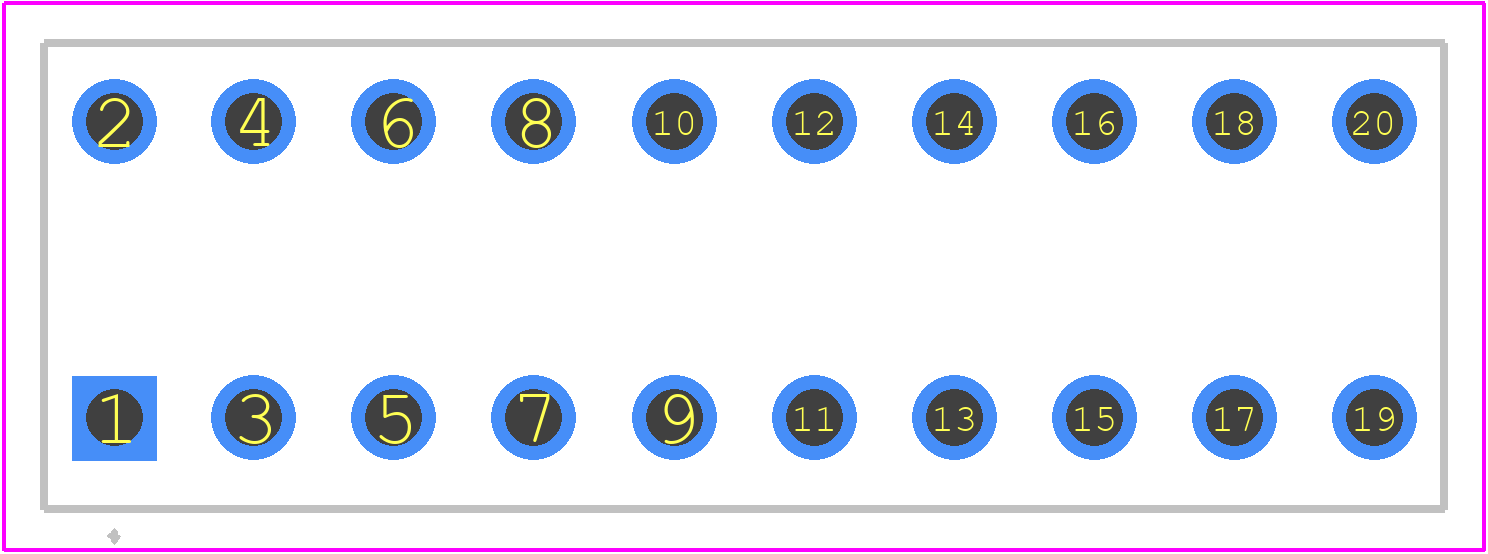

14021014101000 - HARTING PCB footprint - Other - Other - 14021014101000-2
click to zoom
3D Models
14021014101000 - HARTING - 3D model - Other - 14021014101000-2
click to zoom

14021014101000 Details

  • Manufacturer Part Number:

    14021014101000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Italy

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    HARTING Technology Group

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

14021014101000 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 14021014101000 connector is -40°C to 125°C, according to HARTING's specifications.
  • Yes, the 14021014101000 connector is designed to withstand high-vibration environments, making it suitable for applications in industrial, transportation, and other sectors where vibration is a concern.
  • Yes, the 14021014101000 connector is designed to be resistant to harsh environments, including high humidity and exposure to certain chemicals. However, it's essential to consult HARTING's documentation and perform necessary testing to ensure the connector meets the specific requirements of your application.
  • The mating cycle life of the 14021014101000 connector is typically rated for 500-1000 mating cycles, depending on the specific application and environmental conditions.
  • The 14021014101000 connector is designed to be compatible with other HARTING products, but compatibility with third-party connectors should be verified through testing and consultation with HARTING's documentation and technical support.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

14021014101000 Overview

Use the download button to access the 14021014101000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 14021, or try a keyword search, such as Terminals and Terminal Blocks
