1402457 - Phoenix Contact

Description: SACC-CI-M12FS-8CON-L180-10G - Contact carrier, Ethernet CAT6<sub>A</sub>, 8-position, Socket, straight, M12, X-coding, THR solder connection, this item is expected to be lead-free from Q2 2026 in accordance with RoHS II without exception 6c (Pb &lt; 0.1%), a lead-free alternative is possible on request in advance

Download 1402457 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1402457 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

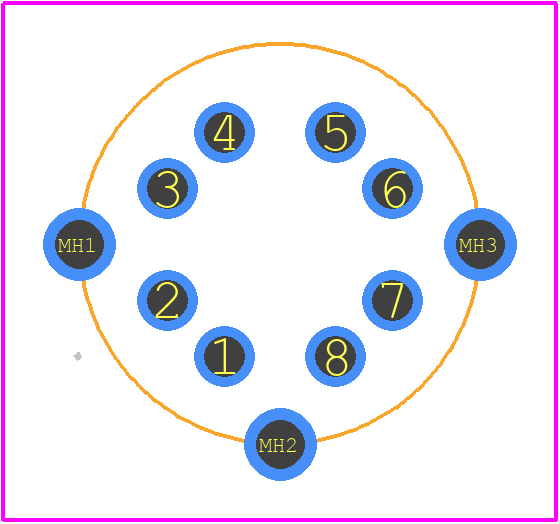

1402457 - Phoenix Contact PCB footprint - Other - Other - 1402457-5
click to zoom
3D Models
1402457 - Phoenix Contact - 3D model - Other - 1402457-5
click to zoom

1402457 Details

  • Manufacturer Part Number:

    1402457

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Phoenix Contact

  • Additional Feature:

    IP20

  • Backshell Type:

    SOLID

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    SNAP

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    YES

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

1402457 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, depending on the specific application and environmental conditions.
  • Yes, the 1402457 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's recommended to consult with Phoenix Contact or a qualified engineer to ensure the connector meets the specific vibration requirements of your application.
  • The 1402457 connector has a IP67 rating, making it suitable for outdoor use and harsh environments. However, it's essential to ensure the connector is properly sealed and installed to maintain its environmental rating.
  • Yes, the 1402457 connector is designed to be compatible with other Phoenix Contact products, such as their terminal blocks and connectors. However, compatibility with third-party components should be verified before use.
  • The 1402457 connector has an operating temperature range of -40°C to 125°C, making it suitable for a wide range of applications.
